Dye Laser Cells
Dye laser cells are manufactured with extreme surface flatness extending to the edges of the cell. Flatness is checked via interferometer.

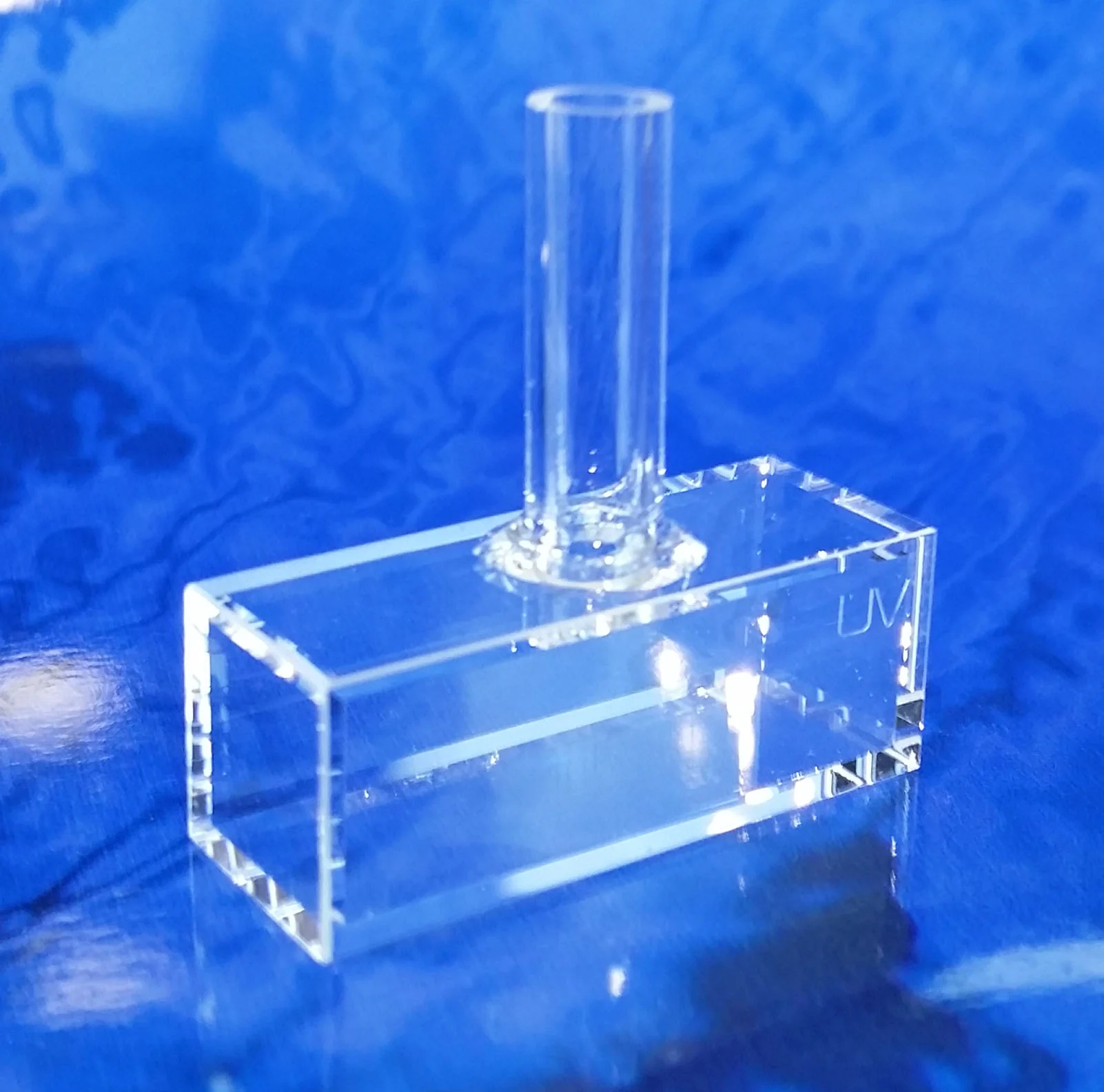

Type 87 Macro Laser Absorption Cell with PTFE Stopper (Lightpath: 30-60mm)
Type 87 Macro Laser Absorption Cell with PTFE Stopper (Lightpath: 30-60mm)
Firefly's laser absorption cell.
Features of FireflySci Type 87 Laser Absorption Cell:
Highly accurate results, only need to test sample once.
Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
Made by hand, ensuring high quality optical polishing with no defects.
Each cell goes through a rigorous inspection process before leaving our factory.
Fire-fused to ensure that cuvettes are robust and durable.
Available in UV Quartz & IR Quartz.
Lightpaths of 30mm & 60mm available
Four windows optically polished.
Quartz tubes: OD6mm x ID4mm x L20mm
Height is without tube.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Inner Height | Capacity |
|---|---|---|---|---|---|---|---|---|
| 30mm | PTFE Stopper | 32.5mm | 12.5mm | 12.5mm | 30.0mm | 10.0mm | 10.0mm | 3.000ml |
| 60mm | PTFE Stopper | 62.5mm | 12.5mm | 12.5mm | 60.0mm | 10.0mm | 10.0mm | 6.000ml |
