Dye Laser Cells
Dye laser cells are manufactured with extreme surface flatness extending to the edges of the cell. Flatness is checked via interferometer.

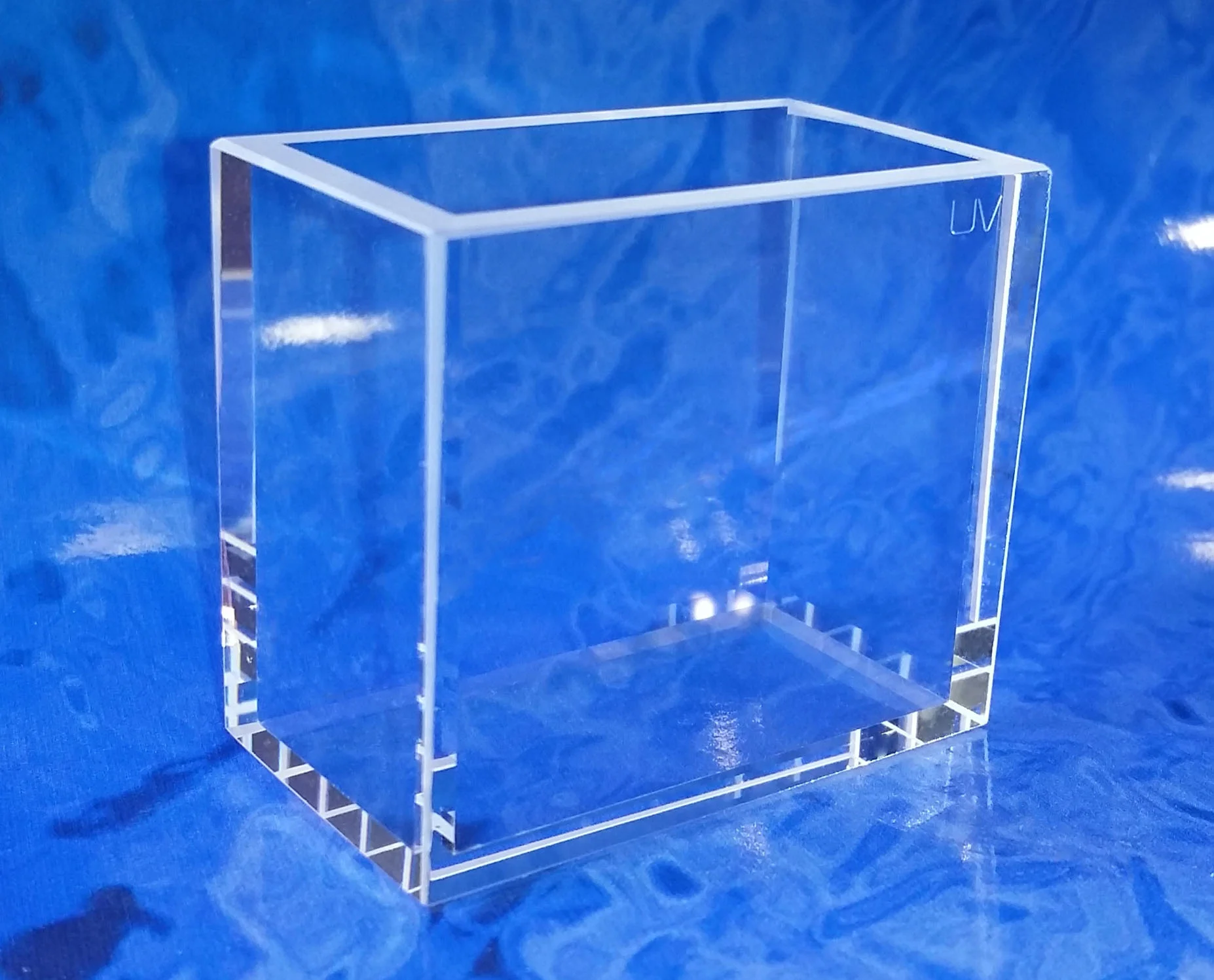

Type 2267B Dye Laser Cell (Lightpath: 20x40mm)
Type 2267B Dye Laser Cell (Lightpath: 20x40mm)
Standard 40mm dye laser cell.
Features of FireflySci Type 2267B Dye Laser Cell:
Highly accurate results, only need to test sample once.
Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
Made by hand, ensuring high quality optical polishing with no defects.
Each cell goes through a vigorous inspection process before leaving our factory.
Fire-fused to ensure that cuvettes are robust and durable.
Available in UV Quartz and 20/40mm variable lightpath.
Four windows and base optically polished.
High degree of parallelism for dye laser measurements.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Capacity |
|---|---|---|---|---|---|---|---|
| 20 or 40mm | Open | 26.0mm | 46.0mm | 40.0mm | 20.0mm | 40.0mm | 24.000ml |
![firefly_logo_FINAL [Black].jpg](https://images.squarespace-cdn.com/content/v1/5411d5c0e4b02e1c8b27565a/1434491508803-XB4OF7YDY46Z72L5U5AP/firefly_logo_FINAL+%5BBlack%5D.jpg){kind=logo}
From the lab bench to Antarctica’s frozen frontier, FireflySci dye laser cells power the yellow 589 nm laser light behind the STAR Na Doppler LIDAR—supporting world-class atmospheric research at the edge of the planet.
