Water Jacketed Cuvettes
These spectrophotometric cuvettes are designed with an additional chamber surrounding the sample chamber through which liquids can be circulated to control the temperature. A water jacket, if you will!

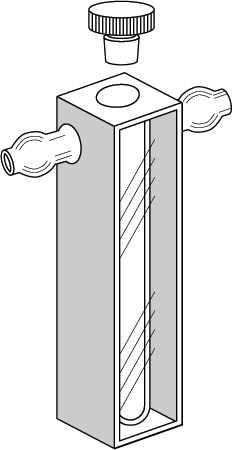

Type 53 Water Jacketed Cell with PTFE Stopper (Lightpath: 10mm)
Type 53 Water Jacketed Cell with PTFE Stopper (Lightpath: 10mm)
from $804.00
Water jacketed spectrophotometer cuvette with PTFE stopper.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 53 Water Jacketed Cylindrical Polarimeter Cell:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a rigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Available in UV Quartz & IR Quartz
- Available in 10mm lightpath
- Two windows optically polished.
- Contains tubes to water jacket. Dimensions: OD4 X ID2 x L12.5mm
- Outer width is without tubes.
- Outer height is without stopper.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Inner Height | Capacity |
|---|---|---|---|---|---|---|---|---|
| 10mm | PTFE Stopper | 12.5mm | 12.5mm | 50.0mm | 10.0mm | 4.0mm | 42.0mm | 1.400ml |
