Water Jacketed Cuvettes
These spectrophotometric cuvettes are designed with an additional chamber surrounding the sample chamber through which liquids can be circulated to control the temperature. A water jacket, if you will!

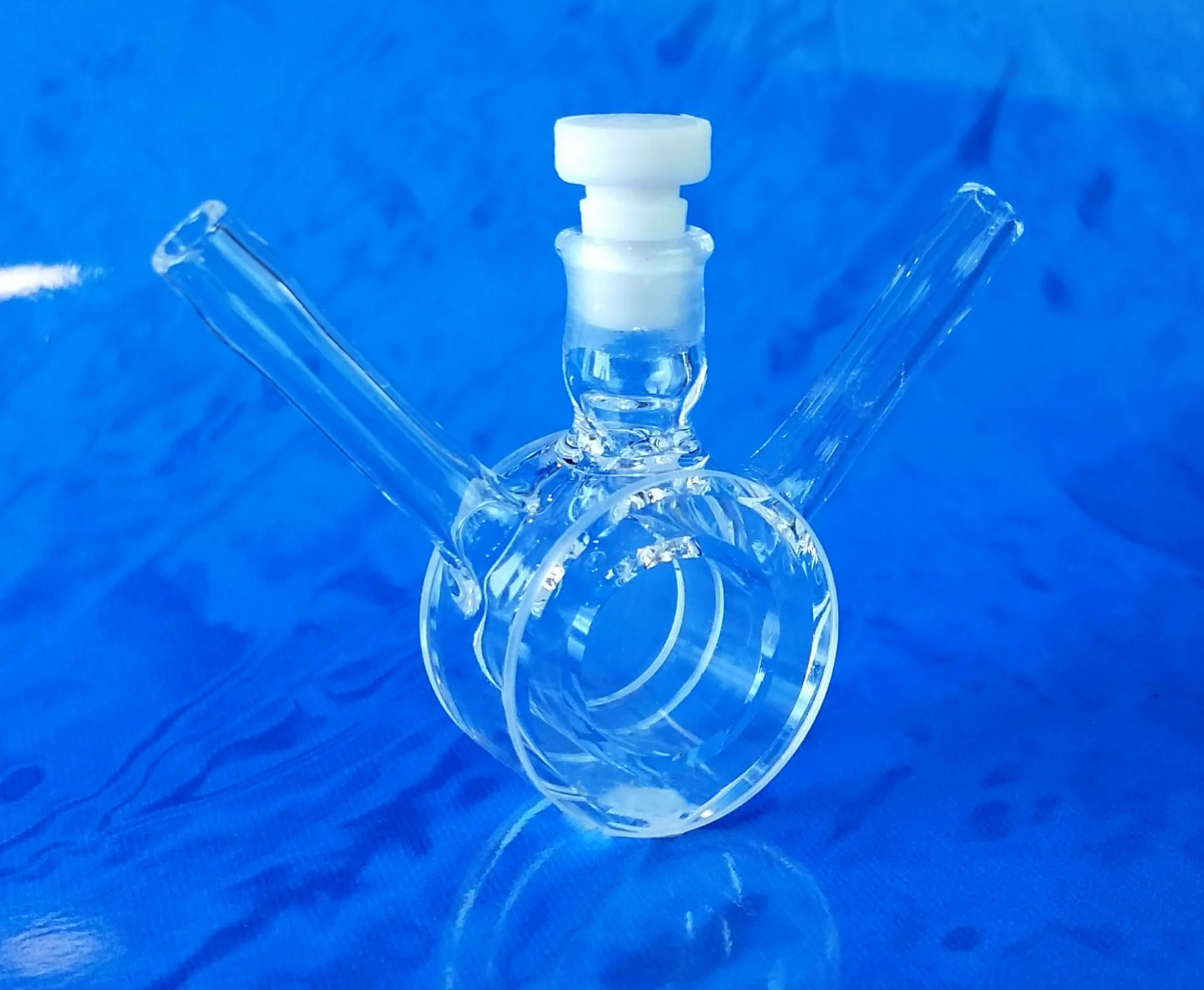

Type 50 Water Jacketed Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 5-100mm)
Type 50 Water Jacketed Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 5-100mm)
Firefly's cylindrical water jacketed polarimeter cell with PTFE stopper. The water jacket, which runs around the sample chamber will keep the chamber at a constant temperature.
Features of FireflySci Type 50 Water Jacketed Cylindrical Polarimeter Cell:
Highly accurate results, only need to test sample once.
Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
Made by hand, ensuring high quality optical polishing with no defects.
Each cell goes through a rigorous inspection process before leaving our factory.
Fire-fused to ensure that cuvettes are robust and durable.
Available in UV Quartz
Lightpaths from 5-10mm available
Two windows optically polished.
Contains tubes to water jacket. Dimensions: OD5 X ID3mm x L25mm
| Lightpath | Top | Outer Length | Outer Height | Outer Diameter | Chamber Diameter | Chamber Length | Capacity |
|---|---|---|---|---|---|---|---|
| 5mm | PTFE Stopper | 32.0mm | 23.0mm | 23.0mm | 13.0mm | 5.0mm | 0.660ml |
| 10mm | PTFE Stopper | 32.0mm | 23.0mm | 23.0mm | 13.0mm | 10.0mm | 1.320ml |
| 100mm | PTFE Stopper | 32.0mm | 23.0mm | 23.0mm | 13.0mm | 100.0mm | 8.250ml |
