Triangular Cuvettes
Fluorescence cuvettes for use in front-face illumination experiments. These are most helpful for applications with dense samples that have high optical densities.

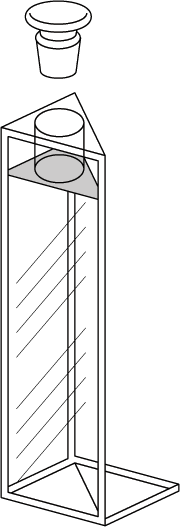

Type 82 Triangular Fluorescence Cell with PTFE Stopper (Lightpath: 10mm)
Type 82 Triangular Fluorescence Cell with PTFE Stopper (Lightpath: 10mm)
from $547.00
Triangular fluorescence cell with PTFE stopper.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 82 Triangular Fluorescence Cell with PTFE Stopper:
- Hand made ensuring the highest quality optical polish with no defects.
- Every cell is thoroughly inspected before leaving the factory.
- Firefly cuvettes are guaranteed to give you the best optical transmission.
- Fire fused to ensure the best bonding.
- Several different materials available: (UV Quartz & IR Quartz)
- Available in 10mm lightpath.
- Three windows and the base optically polished.
- Angles: 45º x 45º x 90º
- Comes with PTFE stopper.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Capacity |
|---|---|---|---|---|---|---|---|
| 10mm | PTFE Stopper | 12.5mm | 12.5mm | 49.0mm | 10.0mm | 10.0mm | 1.750ml |
