Cuvettes with Graded Seal Tube
Cuvettes with quartz-to-pyrex graded seal tubes. This structure allows for these cuvettes to be fused to other borosilicate structures. The standard tube dimensions are OD8mm x ID6mm.

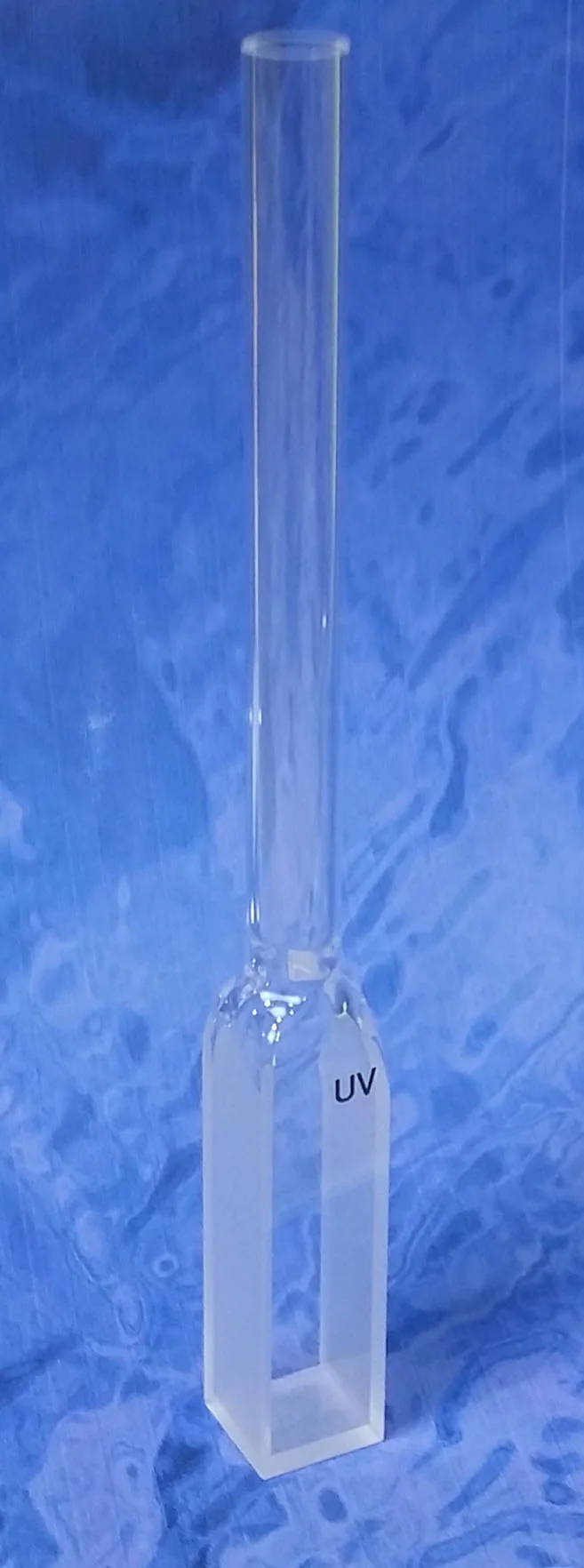

Type 62 Macro Spectrophotometer Cuvette with Straight Bore Tube (Lightpath: 10mm)
Type 62 Macro Spectrophotometer Cuvette with Straight Bore Tube (Lightpath: 10mm)
from $309.00
FireflySci spectrophotometer cuvette with a straight bore tube.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 62 Macro Spectrophotometer Cuvette with Quartz Tube:
- Hand made ensuring the highest quality optical polish with no defects.
- Every cell is thoroughly inspected before leaving the factory.
- Firefly cuvettes are guaranteed to give you the best optical transmission.
- Fire fused to ensure the best bonding.
- Several different materials available: (Optical Glass & UV Quartz)
- Available in 10mm lightpath.
- Two windows optically polished.
- Contains a straight bore tube: OD 8mm X ID 6mm (For the Optical Glass variety, the tube is made from optical glass. With UV Quartz, the tube is made from UV Quartz)
- Height is without straight bore tube
- Overall height is approximately 125mm
| Lightpath | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Inner Height | Capacity |
|---|---|---|---|---|---|---|---|
| 10mm | 12.5mm | 12.5mm | 125mm | 10.0mm | 10.0mm | 45.0mm | 3.500ml |
