Semi-Micro Cuvettes
Spectrophotometer cells with semi-micro capacities (0.700-1.400ml)

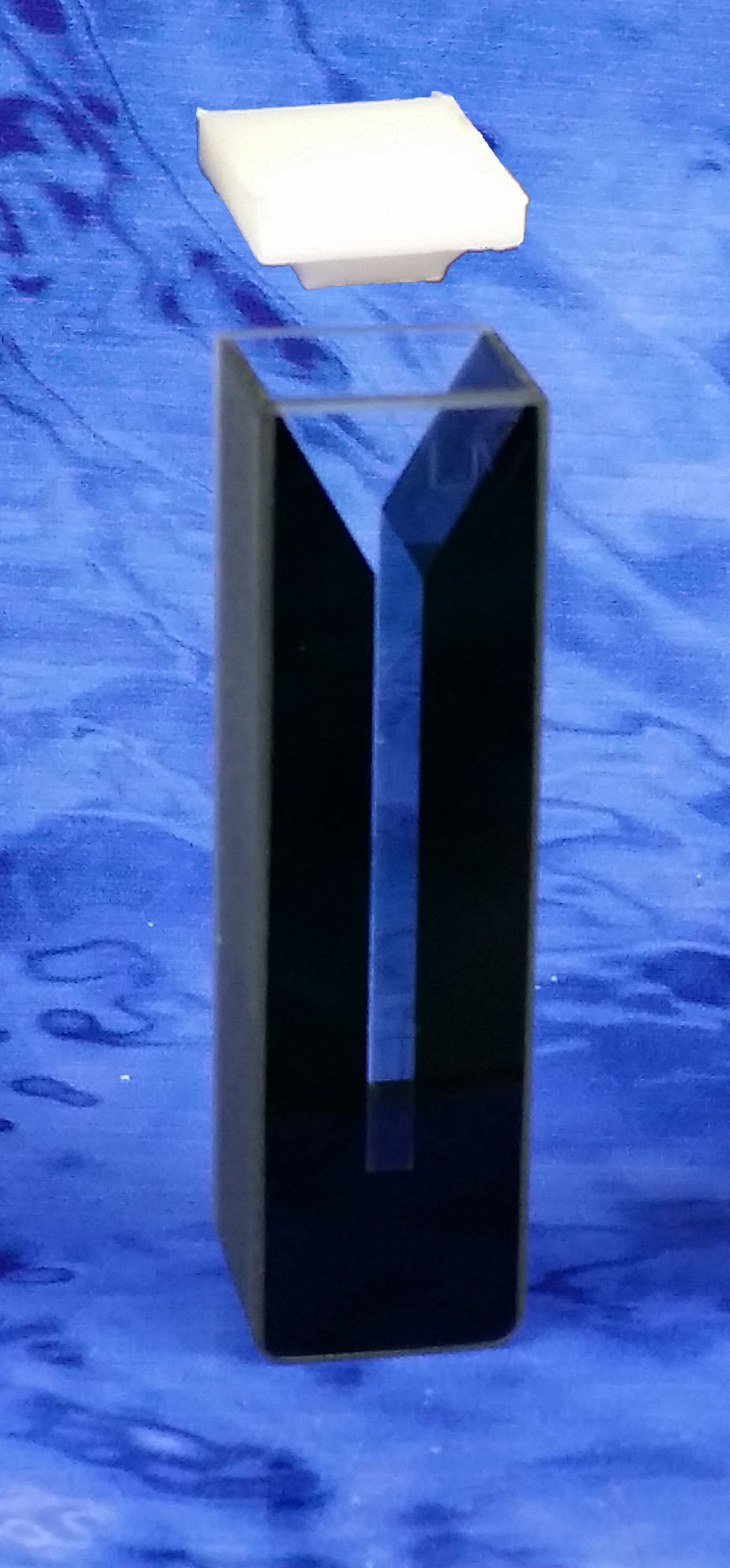

Type 9BM Semi-Micro Raised-Bottom Black Cuvette with PTFE Cover (Lightpaths: 10x1-10x5mm)
Type 9BM Semi-Micro Raised-Bottom Black Cuvette with PTFE Cover (Lightpaths: 10x1-10x5mm)
from $448.00
All but identical to the Type 9M semi-micro spectrophotometer cuvette but the floor of the cuvette is raised 9mm.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 9BM Semi-Micro Raised-Bottom Black Spectrophotometer Cuvette:
- Highly accurate results, only need to test sample once.
- Accuracy and high quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in UV Quartz & IR Quartz
- Lightpaths of 10mm available with various inner widths (10x1-10x5mm).
- Base thickness- 9mm
- Two windows optically polished.
- Walls are made from black quartz to block out stray light.
- Includes PTFE cover.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Base Thickness | Capacity |
|---|---|---|---|---|---|---|---|---|
| 10x1mm | PTFE Cover | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 1.0mm | 9.0mm | 0.400ml |
| 10x3mm | PTFE Cover | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 3.0mm | 9.0mm | 1.100ml |
| 10x5mm | PTFE Cover | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 5.0mm | 9.0mm | 1.800ml |
