Semi-Micro Cuvettes
Spectrophotometer cells with semi-micro capacities (0.700-1.400ml)

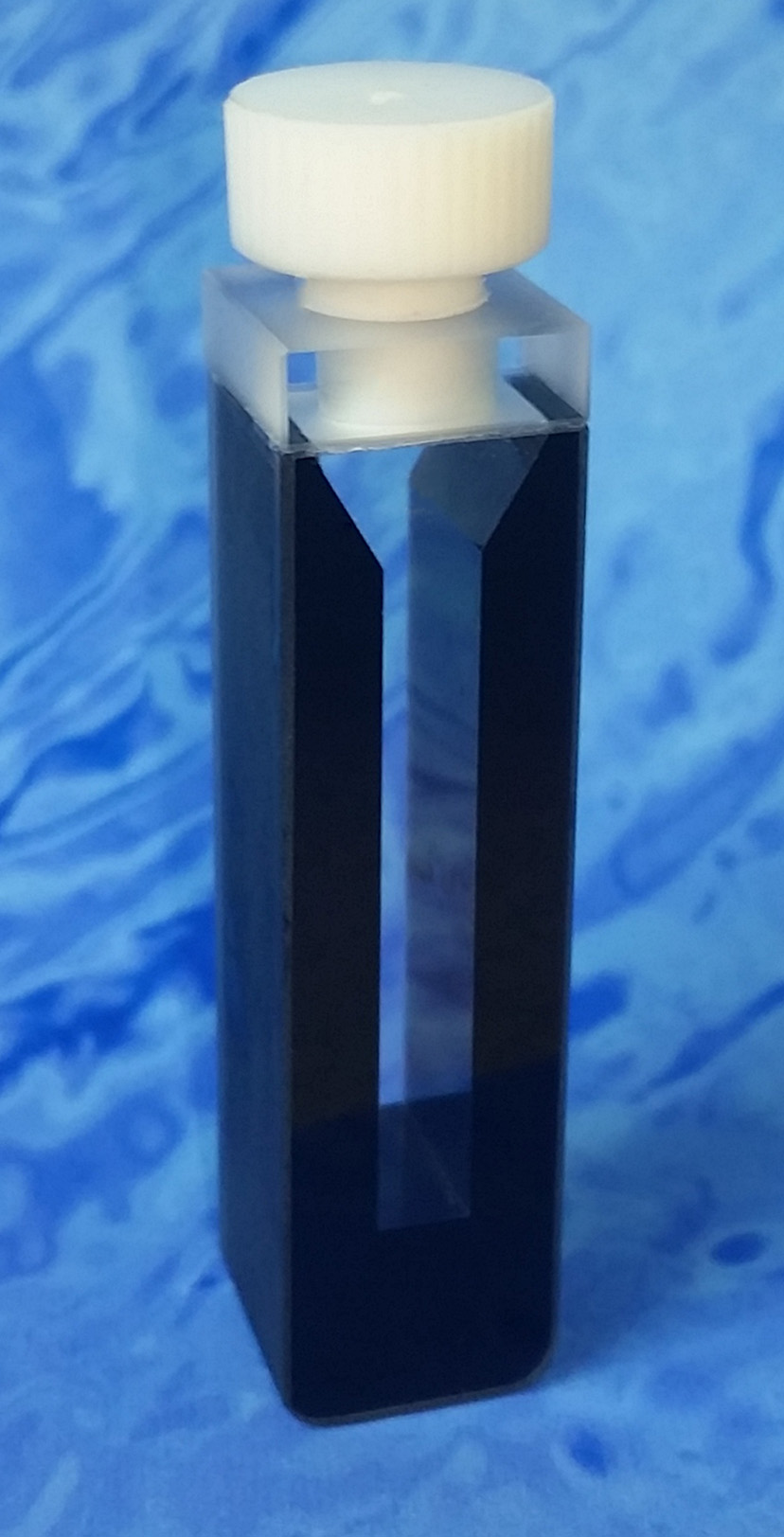

Type 29BM Semi-Micro Raised-Bottom Cuvette with PTFE Cover (Lightpaths: 5-40mm)
Type 29BM Semi-Micro Raised-Bottom Cuvette with PTFE Cover (Lightpaths: 5-40mm)
from $500.00
All but identical to the Type 29M semi-micro spectrophotometer cuvette but the floor of the cuvette is raised 9mm.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 29BM Semi-Micro Raised-Bottom Black Spectrophotometer Cuvette:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in UV Quartz & IR Quartz
- Available lightpaths range from 5-40mm.
- The floor of this cuvette is raised 9mm from the bottom.
- Two windows optically polished.
- Walls are made from black quartz to block out stray light.
- Includes PTFE stopper.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Base Thickness | Capacity |
|---|---|---|---|---|---|---|---|---|
| 5mm | PTFE Stopper | 7.5mm | 12.5mm | 49.0mm | 5.0mm | 4.0mm | 9.0mm | 0.600ml |
| 10mm | PTFE Stopper | 12.5mm | 12.5mm | 49.0mm | 10.0mm | 4.0mm | 9.0mm | 1.200ml |
| 20mm | PTFE Stopper | 22.5mm | 12.5mm | 49.0mm | 20.0mm | 4.0mm | 9.0mm | 2.400ml |
| 30mm | PTFE Stopper | 32.5mm | 12.5mm | 49.0mm | 30.0mm | 4.0mm | 9.0mm | 3.600ml |
| 40mm | PTFE Stopper | 42.5mm | 12.5mm | 49.0mm | 40.0mm | 4.0mm | 9.0mm | 4.800ml |
