Microfluidic Chips

Microfluidic chips, also known as lab-on-a-chip devices, are miniaturized devices that enable the manipulation and analysis of small volumes of fluids on the microliter (10^-6 L) or even nanoliter (10^-9 L) scale. They consist of a network of microchannels, chambers, and valves etched or molded onto a substrate. Microfluidic chips can be used for a variety of applications, including chemical analysis, biological assays, medical diagnostics, and drug discovery. FireflySci offers these in a number of custom configurations and materials.

Here is a detailed breakdown of the components and functions of microfluidic chips:

Substrate Material: The substrate material is typically made of glass, silicon, or polymer materials. The choice of material depends on the specific application and the desired properties of the chip, such as optical transparency, biocompatibility, mechanical strength, and ease of fabrication.

Microchannels: Microchannels are tiny channels etched or molded onto the substrate. These channels range in size from a few micrometers to several hundred micrometers in width and depth. The channels are designed to direct the flow of fluids and can be used to transport and mix reagents, cells, or other biological or chemical substances.

Chambers: Chambers are small compartments or reservoirs within the microfluidic chip where samples can be stored or reactions can occur. Chambers can be used for various applications, such as culturing cells or running polymerase chain reaction (PCR) assays.

Valves: Valves are structures that control the flow of fluids within the microfluidic chip. Valves can be either passive or active. Passive valves rely on the physical properties of the channel to regulate fluid flow, such as changes in channel geometry or the use of hydrophobic or hydrophilic surfaces. Active valves use external pressure or electric fields to open or close the channels.

Pumps: Pumps are devices that generate pressure or suction to move fluids through the microchannels. Pumps can be either active or passive. Passive pumps rely on changes in the channel geometry or the use of capillary forces to move fluids. Active pumps use external forces, such as electric fields or pneumatic pressure, to move fluids.

Sensors: Sensors are devices that can detect and measure various physical or chemical properties of the fluids within the microfluidic chip, such as pH, temperature, pressure, or concentration of specific molecules. Sensors can be integrated into the chip to provide real-time feedback and control of the microfluidic processes.

Detection systems: Detection systems are used to analyze the results of the microfluidic experiments. Detection systems can be optical, electrical, or mechanical, and they can detect a variety of signals, such as fluorescence, absorbance, impedance, or mass.

← Back to Microfluidic Chips

Organ-on-a-Chip Devices

Immune Co-Culture Liver-on-a-Chip (1).jpg

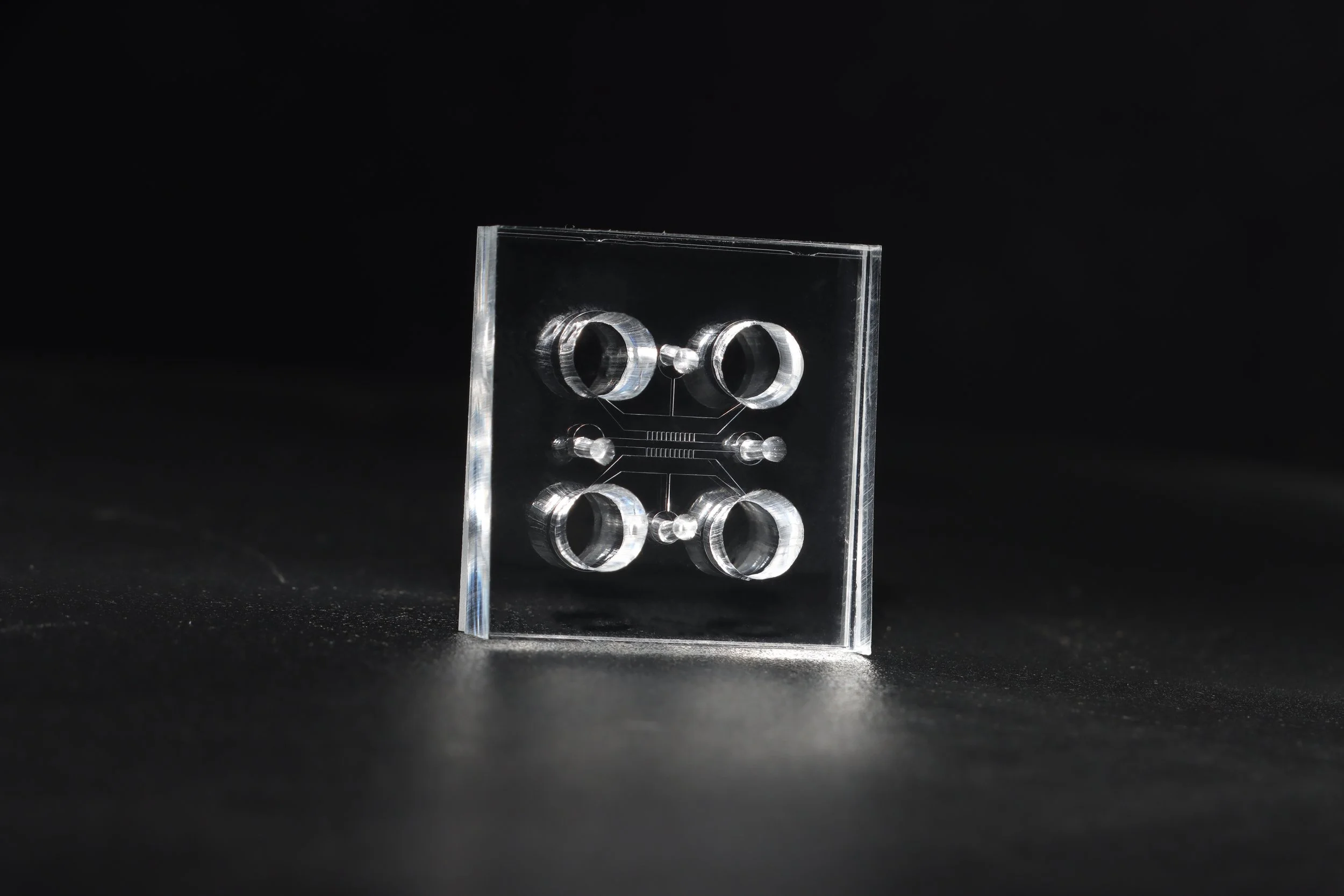

Immune Co-Culture Liver-on-a-Chip (3).JPG

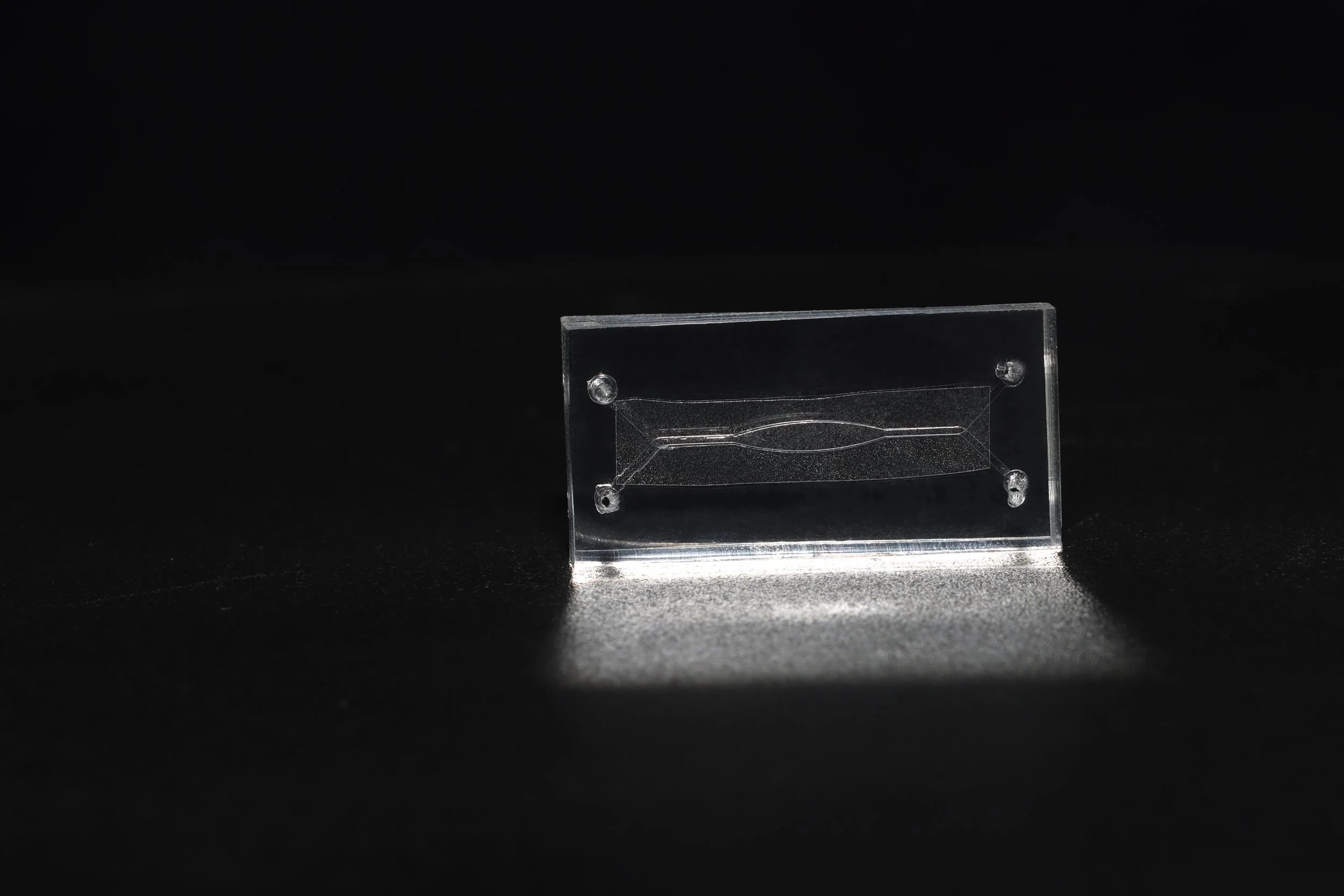

Standard Dual-Channel Barrier-on-a-Chip (2).jpg

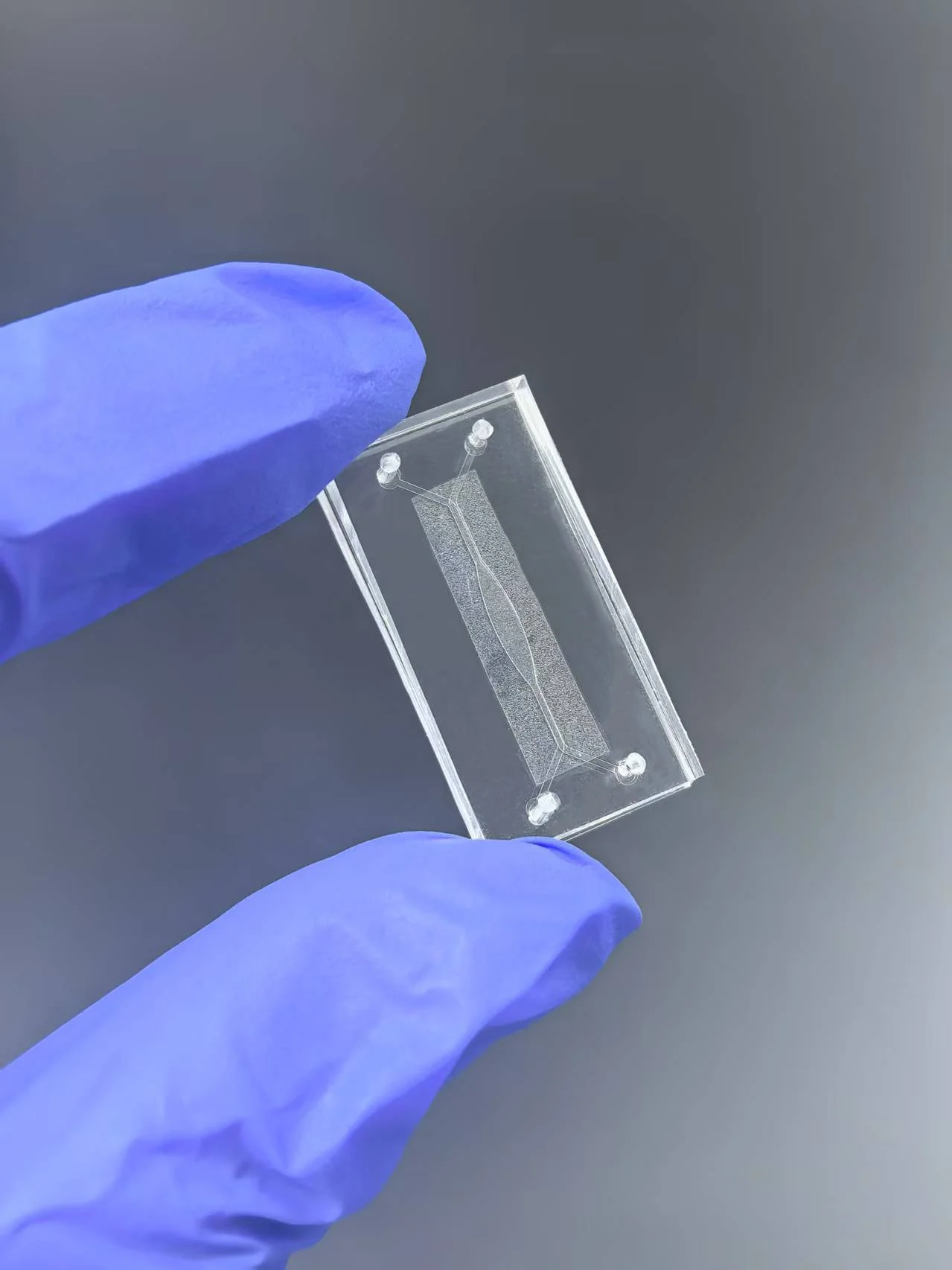

Standard Dual-Channel Barrier-on-a-Chip (4).jpg

Organ-on-a-Chip Devices

from $698.00

FireflySci’s Organ-on-a-Chip devices are advanced microfluidic systems designed to replicate the microarchitecture and dynamic environment of human organs. By integrating tiny channels that allow for the continuous flow of nutrients and removal of waste, these devices enable living cells to grow and interact in ways that closely mimic in vivo conditions. This approach provides researchers with a powerful tool for studying physiology, disease mechanisms, and drug responses without the limitations of traditional 2D cultures or the ethical and logistical challenges of animal testing.

Organ-on-a-Chip technology is increasingly vital for drug development, toxicology testing, and personalized medicine. FireflySci’s designs emphasize precision fabrication, material compatibility, and user-friendly integration with imaging and analysis systems. Built for both research institutions and pharmaceutical companies, these devices offer a reliable platform for generating high-quality, reproducible data.

Version:

Kidney-on-a-Chip Skin-on-a-Chip Blood-Brain-Barrier-Chip SynBBB Chip Follicle-on-a-Chip Bile-Duct-Liver-on-a-Chip

Quantity:

Add To Cart

Features of FireflySci T-Channel Microfluidic Mixers:

Available in a variety of materials including PDMS, PET, Glass, PMMA

Blood-Brain-Barrier-on-a-Chip

SynBBB Chip

Follicle-on-a-Chip

Kidney-on-a-Chip

Bile-Duct-Liver-on-a-Chip

Organ-on-a-Chip Devices: Revolutionizing Biomedical Research

Organ-on-a-Chip (OoC) devices represent a groundbreaking advancement in biomedical engineering, offering the ability to replicate the complex microenvironments of human organs within a small, chip-sized platform. These microfluidic systems combine precise engineering with biological science to mimic organ-level functions, enabling scientists to conduct more accurate studies of human physiology and disease.

What Is an Organ-on-a-Chip?

An Organ-on-a-Chip is a microfluidic device that contains living human cells arranged to simulate the architecture and function of a specific organ. By creating a dynamic, 3D microenvironment—complete with controlled fluid flow, mechanical forces, and chemical gradients—these devices reproduce key aspects of organ behavior that traditional 2D cultures or animal models cannot fully capture.

The chips are often fabricated from transparent, biocompatible materials such as polydimethylsiloxane (PDMS), allowing researchers to visually monitor cell responses in real time. Integrated microchannels carry nutrient-rich fluids, while porous membranes enable the exchange of gases or signaling molecules, closely replicating physiological conditions.

History and Development

The concept of Organ-on-a-Chip technology emerged in the early 2010s, driven by advances in microfluidics and tissue engineering. Harvard’s Wyss Institute was among the first to develop a lung-on-a-chip capable of replicating breathing motions. Since then, research institutions and biotechnology companies worldwide have expanded the field to include heart, liver, kidney, brain, and multi-organ chips.

The push toward more physiologically relevant models was fueled by the need to reduce reliance on animal testing and improve the predictability of preclinical drug trials. As a result, Organ-on-a-Chip devices are now recognized as powerful tools in pharmaceutical research, toxicology studies, and personalized medicine.

Key Advantages of Organ-on-a-Chip Devices

Physiological Accuracy – Mimics organ-specific functions and responses with unprecedented fidelity.
Reduced Animal Testing – Provides ethical, human-relevant alternatives to animal models.
Predictive Drug Screening – Improves accuracy in forecasting human drug responses.
Customizable Platforms – Tailored to replicate healthy or diseased states for targeted research.

Applications in Biomedical Research

Organ-on-a-Chip technology is transforming the way scientists approach medical research and drug development.

Drug Development and Toxicity Testing

These devices allow researchers to study the effects of drugs at the organ level before moving to human trials. Liver-on-a-chip models, for example, can detect hepatotoxicity earlier in the drug development process, reducing costly late-stage failures.

Disease Modeling

By incorporating patient-derived cells, Organ-on-a-Chip devices can replicate specific diseases, such as cancer, cystic fibrosis, or neurodegenerative disorders. This enables researchers to investigate disease progression and test targeted therapies in a patient-specific context.

Multi-Organ Integration

Advanced designs connect multiple chips to simulate organ interactions—known as a “body-on-a-chip.” This innovation allows for systemic studies of drug metabolism, absorption, and excretion across multiple organ systems simultaneously.

Personalized Medicine

Organ-on-a-Chip systems have the potential to revolutionize personalized healthcare by enabling drug screening tailored to an individual’s unique cellular profile. This approach can help determine the most effective treatment with minimal side effects for a specific patient.

FireflySci’s Commitment to Quality Organ-on-a-Chip Devices

FireflySci’s Organ-on-a-Chip platforms are engineered with precision microfluidic designs and built from high-quality, biocompatible materials to ensure consistent performance. Their devices provide researchers with reliable, reproducible results—whether the goal is to model human organ systems, accelerate drug discovery, or advance personalized medicine.

For more information, explore FireflySci’s microfluidic chip offerings, which form the basis for these state-of-the-art Organ-on-a-Chip systems.
