Micro Cuvettes
Spectrophotometer cells with micro capacities (0.350-0.700ml).

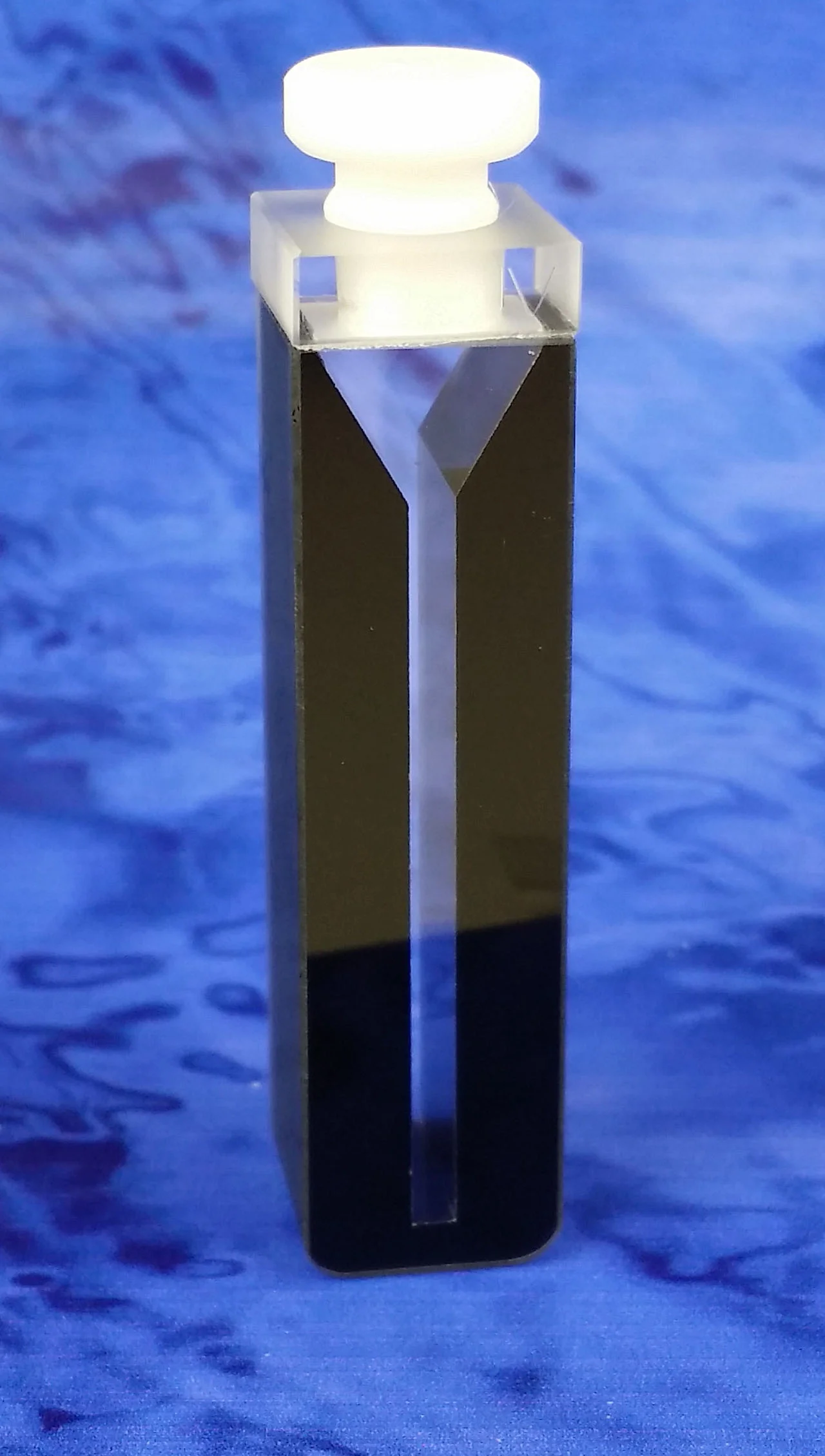

Type 30M Micro Black Cuvette with PTFE Stopper (Lightpaths: 5-40mm)
Type 30M Micro Black Cuvette with PTFE Stopper (Lightpaths: 5-40mm)
from $313.00
All but identical to the Type 30 micro spectrophotometer cuvette but contains black, masked walls
Lightpath:
Material:
Quantity:
Features of FireflySci Type 30M Micro Spectrophotometer Cuvette:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in several different materials: (Optical Glass, UV Quartz, IR Quartz)
- Lightpaths from 5-40mm available
- Two windows optically polished.
- Contains two black masked windows
- Base thickness of 3mm.
- Includes PTFE stopper.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Capacity |
|---|---|---|---|---|---|---|---|
| 5mm | PTFE Stopper | 7.5mm | 12.5mm | 49.0mm | 5.0mm | 2.0mm | 0.350ml |
| 10mm | PTFE Stopper | 12.5mm | 12.5mm | 49.0mm | 10.0mm | 2.0mm | 0.700ml |
| 20mm | PTFE Stopper | 12.5mm | 12.5mm | 49.0mm | 20.0mm | 2.0mm | 1.400ml |
| 40mm | PTFE Stopper | 42.5mm | 12.5mm | 49.0mm | 40.0mm | 2.0mm | 2.800ml |
