Micro Cuvettes
Spectrophotometer cells with micro capacities (0.350-0.700ml).

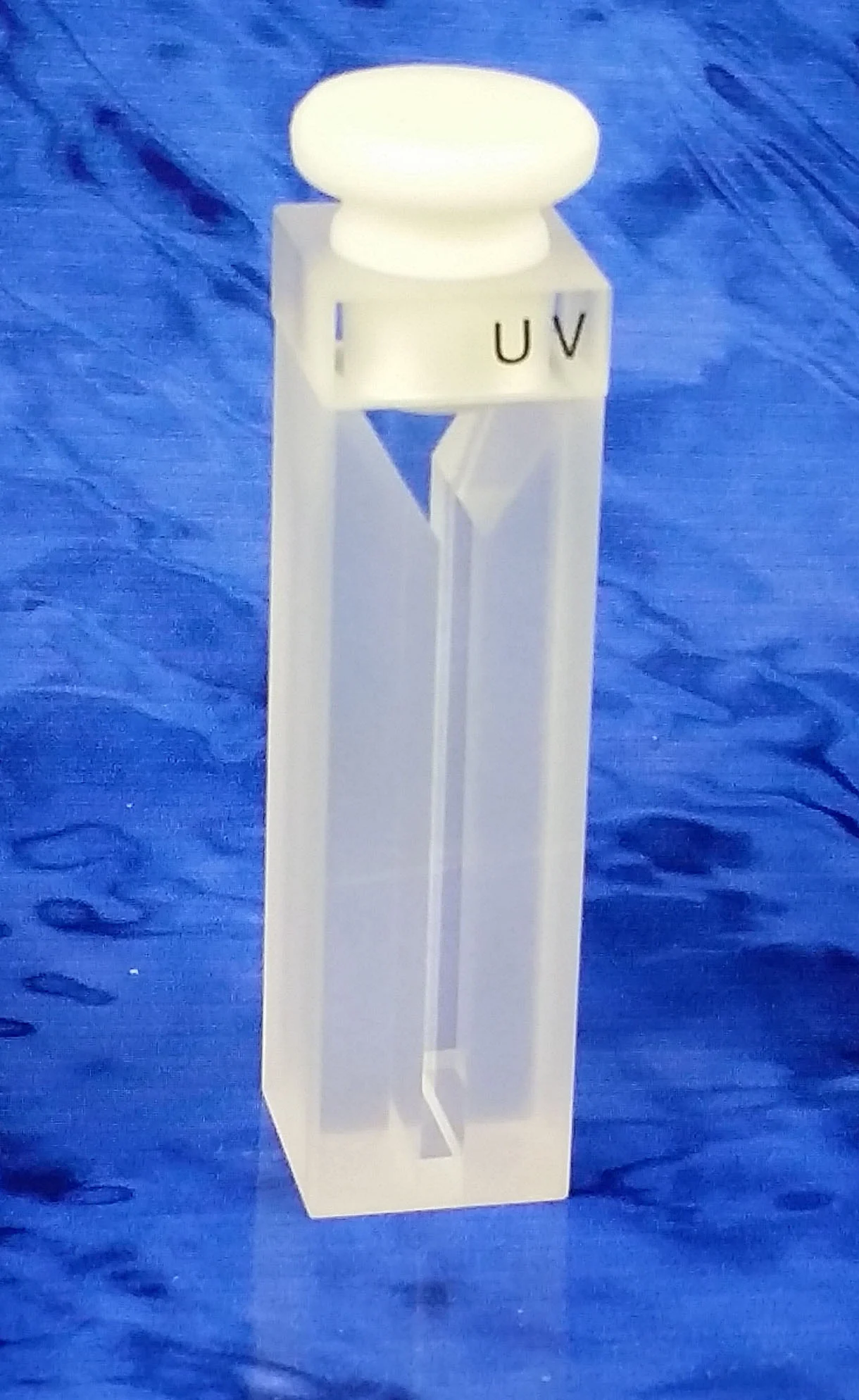

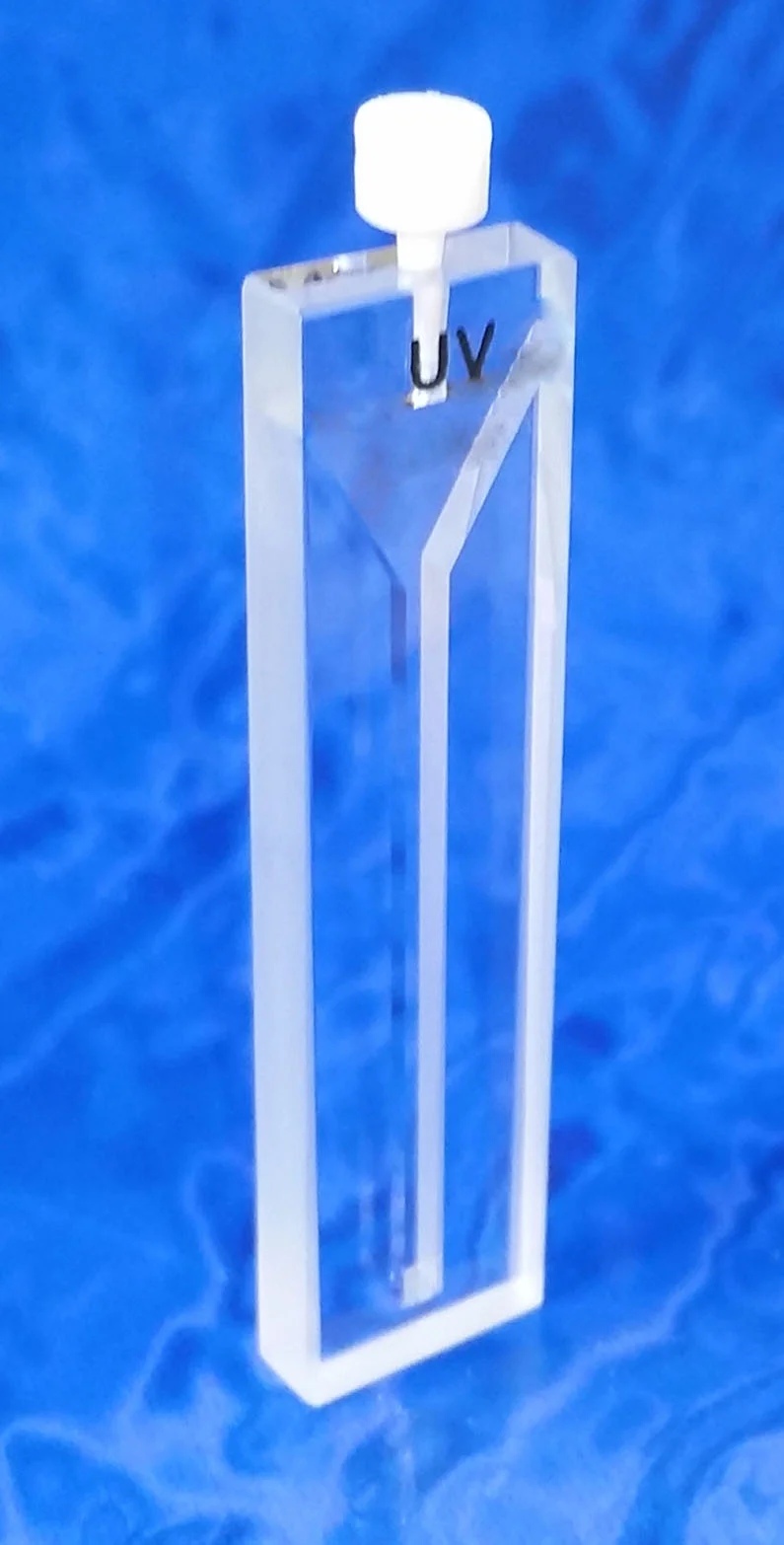

Type 30 Standard Micro Cuvette with PTFE Stopper (Lightpaths: 1-50mm)
Type 30 Standard Micro Cuvette with PTFE Stopper (Lightpaths: 1-50mm)
from $222.00
Standard micro spectrophotometer cuvette with PTFE stopper. The narrower walls enables smaller sample sizes.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 30 Micro Spectrophotometer Cuvette:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in several different materials: (Optical Glass, UV Quartz, IR Quartz)
- Lightpaths from 5-50mm available
- Two windows optically polished.
- Base thickness of 3mm.
- Includes PTFE stopper.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Capacity |
|---|---|---|---|---|---|---|---|
| 1mm | PTFE Stopper | 3.5mm | 12.5mm | 49.0mm | 1.0mm | 2.0mm | 0.070ml |
| 2mm | PTFE Stopper | 4.5mm | 12.5mm | 49.0mm | 2.0mm | 2.0mm | 0.140ml |
| 5mm | PTFE Stopper | 7.5mm | 12.5mm | 49.0mm | 5.0mm | 2.0mm | 0.350ml |
| 10mm | PTFE Stopper | 12.5mm | 12.5mm | 49.0mm | 10.0mm | 2.0mm | 0.700ml |
| 30mm | PTFE Stopper | 32.5mm | 12.5mm | 49.0mm | 30.0mm | 2.0mm | 2.100ml |
| 40mm | PTFE Stopper | 42.5mm | 12.5mm | 49.0mm | 40.0mm | 2.0mm | 2.800ml |
| 50mm | PTFE Stopper | 52.5mm | 12.5mm | 49.0mm | 50.0m | 2.0mm | 3.500ml |
