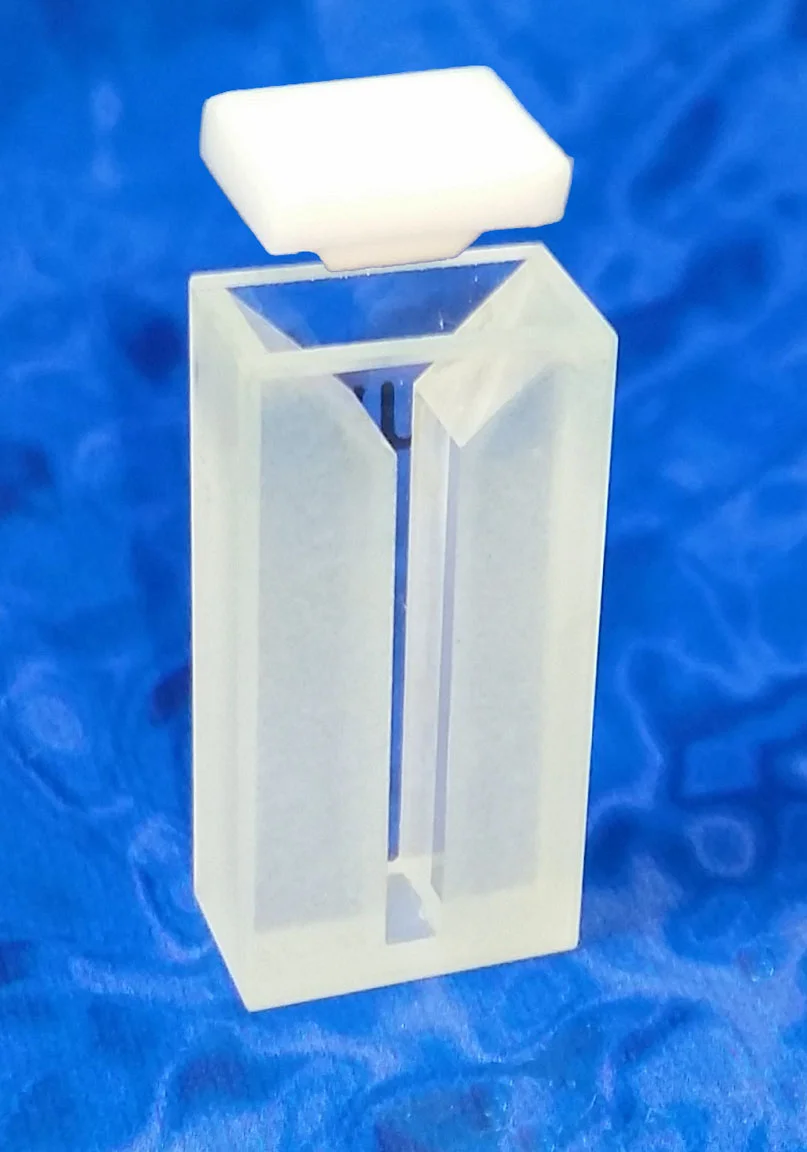

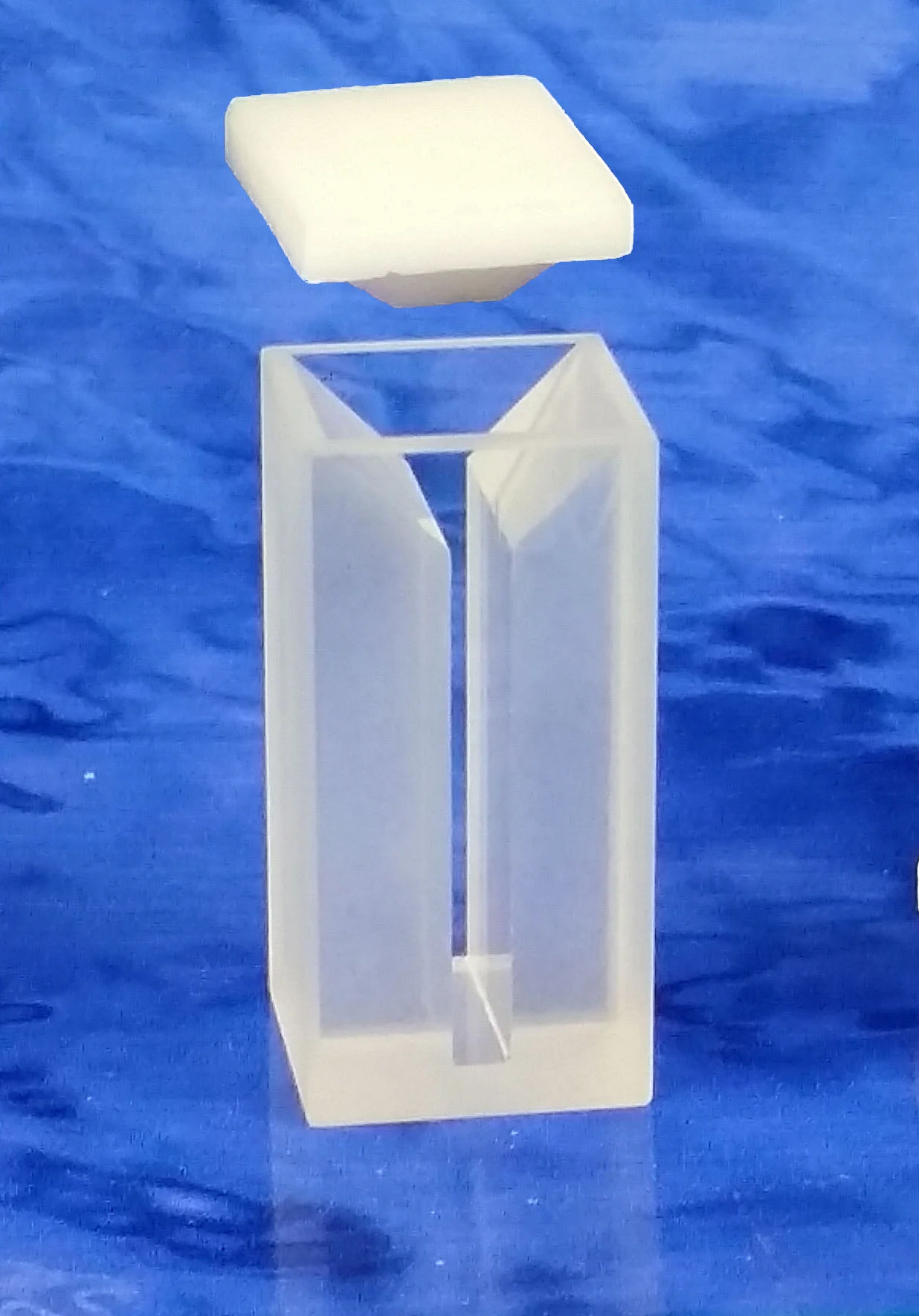

Type 17 Short Micro Cuvette with PTFE Cover (Lightpaths: 5-50mm)


Type 17 Short Micro Cuvette with PTFE Cover (Lightpaths: 5-50mm)

from $137.00

Need a good way to reduce your cuvette volume? The FireflySci Type 17 Short Micro Cuvette is a quick and cost-effective solution with a height of 25mm.

Lightpath:
Material:
Quantity:
Add To Cart

Features of FireflySci Type 17 Short Micro Cuvettes:

  • Highly accurate results, only need to test sample once.

  • Accuracy and high quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.

  • Made by hand, ensuring high quality optical polishing with no defects.

  • Each cell goes through a vigorous inspection process before leaving our factory.

  • Fire-fused to ensure that cuvettes are robust and durable.

  • Comes in several different materials: (UV Quartz & IR Quartz)

  • Available in 10mm lightpath.

  • Two windows optically polished.

LightpathTopOuter LengthOuter WidthOuter HeightInner LengthInner WidthCapacity
5mmPTFE Cover7.5mm12.5mm25.0mm5.0mm2.0mm0.200ml
10mmPTFE Cover12.5mm12.5mm25.0mm10.0mm2.0mm‏0.400ml
20mmPTFE Cover22.5mm12.5mm25.0mm20.0mm2.0mm‏0.800ml
30mmPTFE Cover32.5mm12.5mm25.0mm30.0mm2.0mm1.200ml
40mmPTFE Cover42.5mm12.5mm25.0mm40.0mm2.0mm1.600ml
50mmPTFE Cover52.5mm12.5mm25.0mm50.0mm2.0mm2.000ml
