Macro Cuvettes
Spectrophotometer Cells with Macro capacities (1.400-35.000ml)

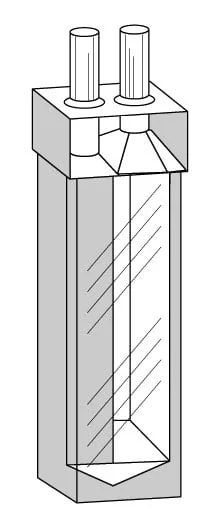

Type 58 Macro Flow Through Cell with Top Tubes (Lightpath: 10mm)
Type 58 Macro Flow Through Cell with Top Tubes (Lightpath: 10mm)
from $694.00
FireflySci's Type 58 Macro Spectrophotometer Flow Through Cell with fused on vertical quartz tubes. Enables a constant flow through the observation chamber.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 58 Macro Spectrophotometer Flow Through Cell with Top Tubes:
- Two windows polished
- Inlet/ Outlet tubes: OD4 X ID2 X L10mm
- Height is without tubes
- Tubes are made of quartz
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Inner Height | Capacity |
|---|---|---|---|---|---|---|---|---|
| 10mm | Flow Through | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 7.0mm | 36.0mm | 2.520ml |
Summary Block
