Macro Cuvettes
Spectrophotometer Cells with Macro capacities (1.400-35.000ml)

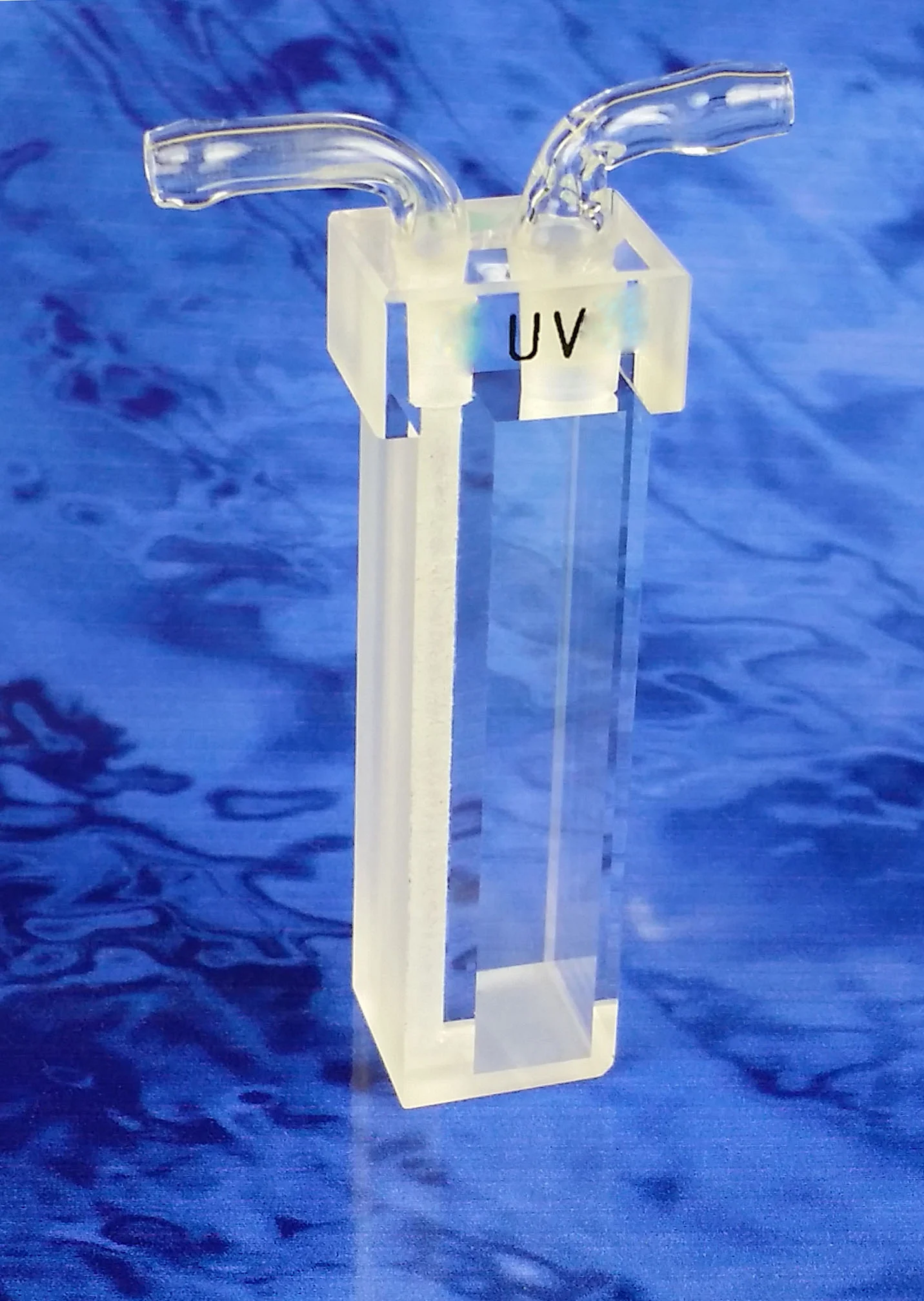

Type 45 Macro Flow Through Cell with Detachable Tubes (Lightpath: 10mm)
Type 45 Macro Flow Through Cell with Detachable Tubes (Lightpath: 10mm)
from $694.00
FireflySci's macro spectrophotometer flow through cell with detachable inlet/outlet quartz tubes. Enables a constant flow through the 2.8ml capacity observation chamber.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 45 Macro Spectrophotometer Flow Through Cell with Detachable Tubes:
- Highly accurate results, only need to test sample once.
- High quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a rigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in several different materials: (UV Quartz and IR Quartz)
- Available in 10mm lightpath
- Two windows polished
- Inlet/outlet tube dimension: OD 4mm x ID 2mm
- Tubes are made of quartz
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Inner Height | Capacity |
|---|---|---|---|---|---|---|---|---|
| 10mm | Flow Through | 12.5mm | 12.5mm | 50.0mm | 10.0mm | 7.0mm | 40.0mm | 2.800ml |
