Macro Cuvettes
Spectrophotometer Cells with Macro capacities (1.400-35.000ml)
Type 41 Macro Cuvette with Screw Cap (Lightpaths: 1-100mm)
Type 41 Macro Cuvette with Screw Cap (Lightpaths: 1-100mm)
from $286.00

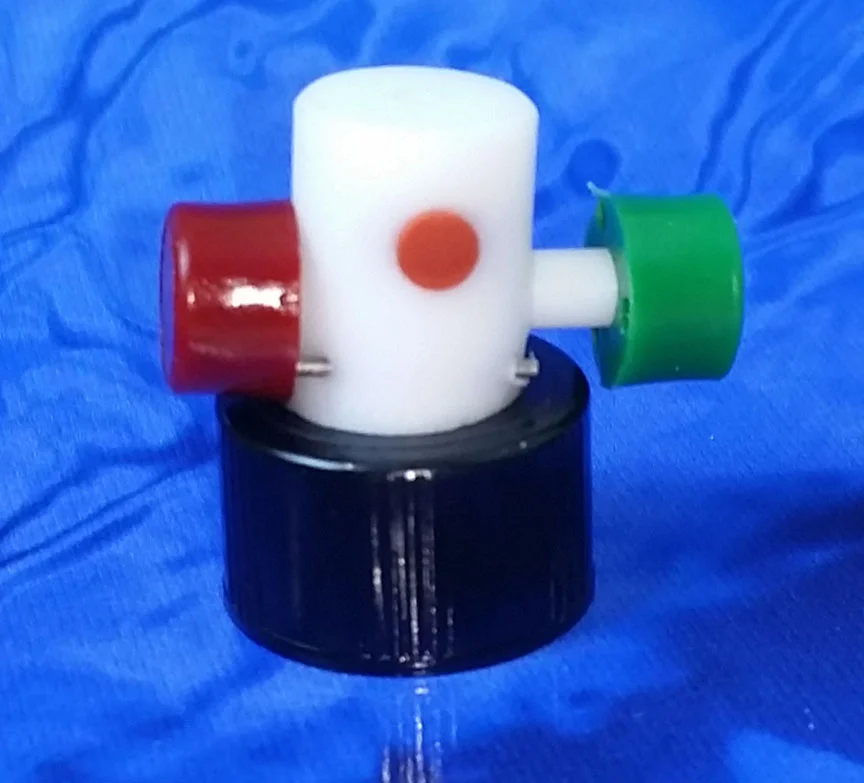

The FireflySci Type 41 cuvette is our standard screw cap cell and is a favorite among scientists who perform anaerobic work. The open SEPTA screw cap enables researchers to make sterile injections into the cuvette without compromising the experiment.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 41 Spectrophotometer Cuvette:
- Fire-fused to ensure that cuvettes are robust and durable.
- Available in Pyrex Glass and UV Quartz.
- Lightpaths of 1-100mm available.
- Two windows optically polished.

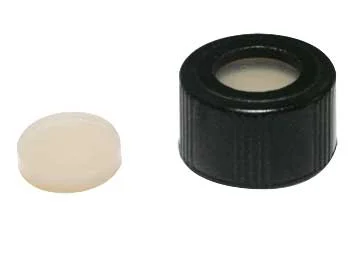

- Includes 1 SEPTA screw cap and 1 closed screw cap.
- Features 13-425 screw cap threadings for maximum durability and versatility.
- Rated to handle up to 5 bar of pressure.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Capacity |
|---|---|---|---|---|---|---|---|
| 1mm | Screw Cap | 3.5mm | 12.5mm | 55.0mm | 1.0mm | 10.0mm | 0.400ml |
| 2mm | Screw Cap | 4.5mm | 12.5mm | 55.0mm | 2.0mm | 10.0mm | 0.700ml |
| 5mm | Screw Cap | 7.5mm | 12.5mm | 55.0mm | 5.0mm | 10.0mm | 1.700ml |
| 10mm | Screw Cap | 12.5mm | 12.5mm | 55.0mm | 10.0mm | 10.0mm | 3.500ml |
| 50mm | Screw Cap | 52.5mm | 12.5mm | 55.0mm | 50.0mm | 10.0mm | 17.500ml |
| 100mm | Screw Cap | 102.5mm | 12.5mm | 55.0mm | 100.0m | 10.0mm | 35.000ml |
