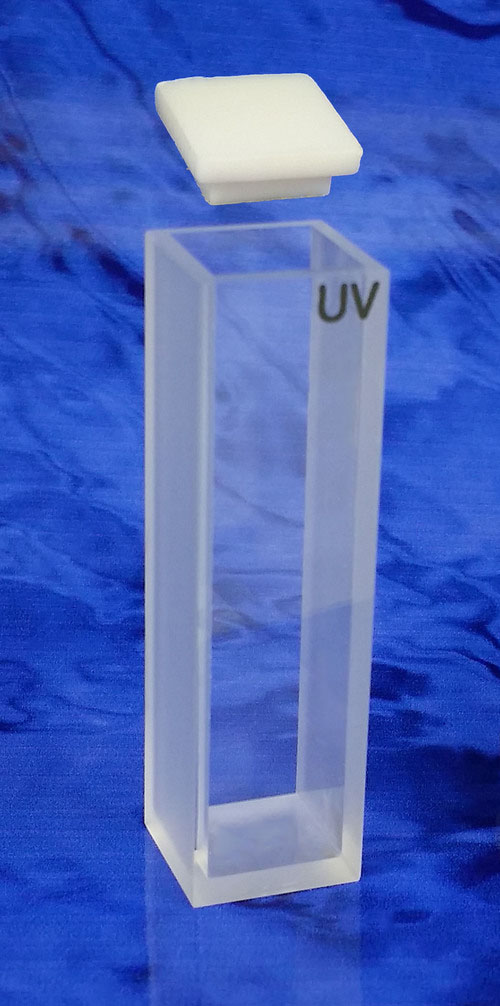

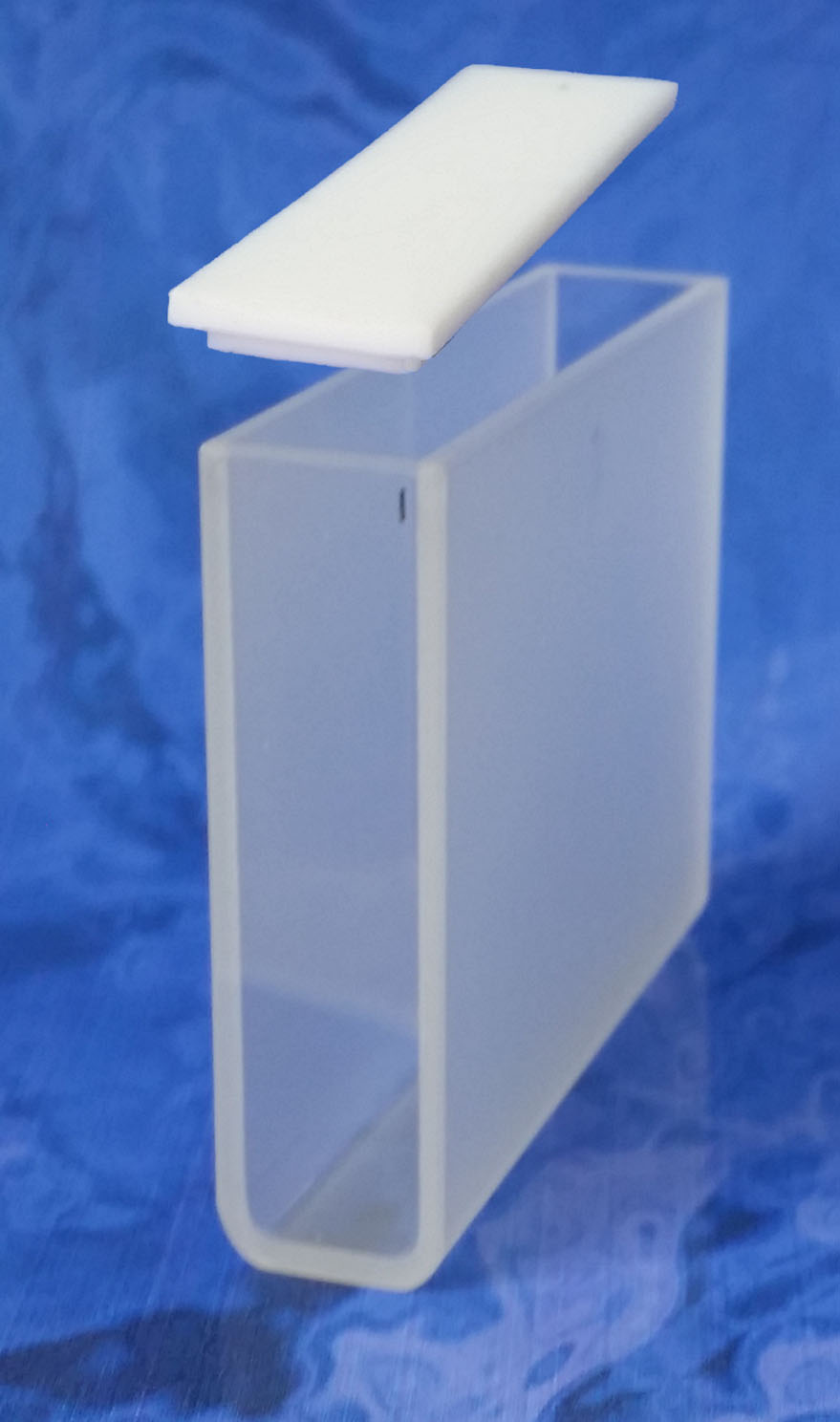

Type 1 Macro Cuvette with PTFE Cover (Lightpaths: 0.5-100mm)

Type 1 - 1mm lightpath
Type 1 - 1mm lightpath

Type 1 Macro Cuvette with PTFE Cover (Lightpaths: 0.5-100mm)

from $70.00

A Type 1 standard spectrophotometer cuvette is a must own cuvette for your lab.  The Firefly Type 1 standard 10mm cell is our #1 seller for UV/VIS spectroscopy and comes in many various lightpaths and materials to fit your exact needs.

Lightpath:
Material:
Quantity:
Add To Cart

What you Get with a Type 1 Macro Spectrophotometer Cuvette:

  • Highly accurate results, only need to test sample once.

  • High quality: Firefly cuvettes are made with the best quartz and glass material available. Excellent transmission values.

  • Made by hand, ensuring high quality optical polishing with no defects.

  • Each cell goes through a vigorous inspection process before leaving our factory.

  • Fire-fused to ensure that cuvettes are robust and durable.

  • Comes in several different materials: (Optical Glass, Pyrex Glass (10mm only), UV Quartz, IR Quartz, Sapphire (10mm only)

  • Lightpaths from 0.5-100mm available

  • Two windows optically polished.

  • Includes PTFE cover.

LightpathTopOuter LengthOuter WidthOuter HeightInner LengthInner WidthCapacity
0.5mmPTFE Cover3.0mm12.5mm45.0mm0.5mm10.0mm0.220ml
1mmPTFE Cover3.5mm12.5mm45.0mm1.0mm10.0mm0.400ml
2mmPTFE Cover4.5mm12.5mm45.0mm2.0mm10.0mm0.700ml
5mmPTFE Cover7.5mm12.5mm45.0mm5.0mm10.0mm1.700ml
10mmPTFE Cover12.5mm12.5mm45.0mm10.0mm10.0mm‏3.500ml
20mmPTFE Cover22.5mm12.5mm45.0mm20.0mm10.0mm7.000ml
30mmPTFE Cover32.5mm12.5mm45.0mm30.0mm10.0mm10.500ml
40mmPTFE Cover42.5mm12.5mm45.0mm40.0mm10.0mm14.000ml
50mmPTFE Cover52.5mm12.5mm45.0mm50.0mm10.0mm17.500ml
100mmPTFE Cover102.5mm12.5mm45.0mm100.0m10.0mm35.000ml
MaterialLightpathPart #
UV Quartz0.5mm1UV0.5
UV Quartz1mm1UV1
UV Quartz2mm1UV2
UV Quartz5mm1UV5
UV Quartz10mm1UV10
UV Quartz20mm1UV20
UV Quartz30mm1UV30
UV Quartz40mm1UV40
UV Quartz50mm1UV50
UV Quartz100mm1UV100
Optical Glass1mm1G1
Optical Glass2mm1G2
Optical Glass5mm1G5
Optical Glass10mm1G10
Optical Glass20mm1G20
Optical Glass30mm1G30
Optical Glass40mm1G40
Optical Glass50mm1G50
Optical Glass100mm1G100
Pyrex Glass10mm1G10P
IR Quartz1mm1IR1
IR Quartz2mm1IR2
IR Quartz5mm1IR5
IR Quartz10mm1IR10
IR Quartz20mm1IR20
IR Quartz30mm1IR30
IR Quartz40mm1IR40
IR Quartz50mm1IR50
IR Quartz100mm1IR100
