Semi-Micro Cuvettes
Fluorescence cells with semi-micro capacities (0.700ml-1.400ml).

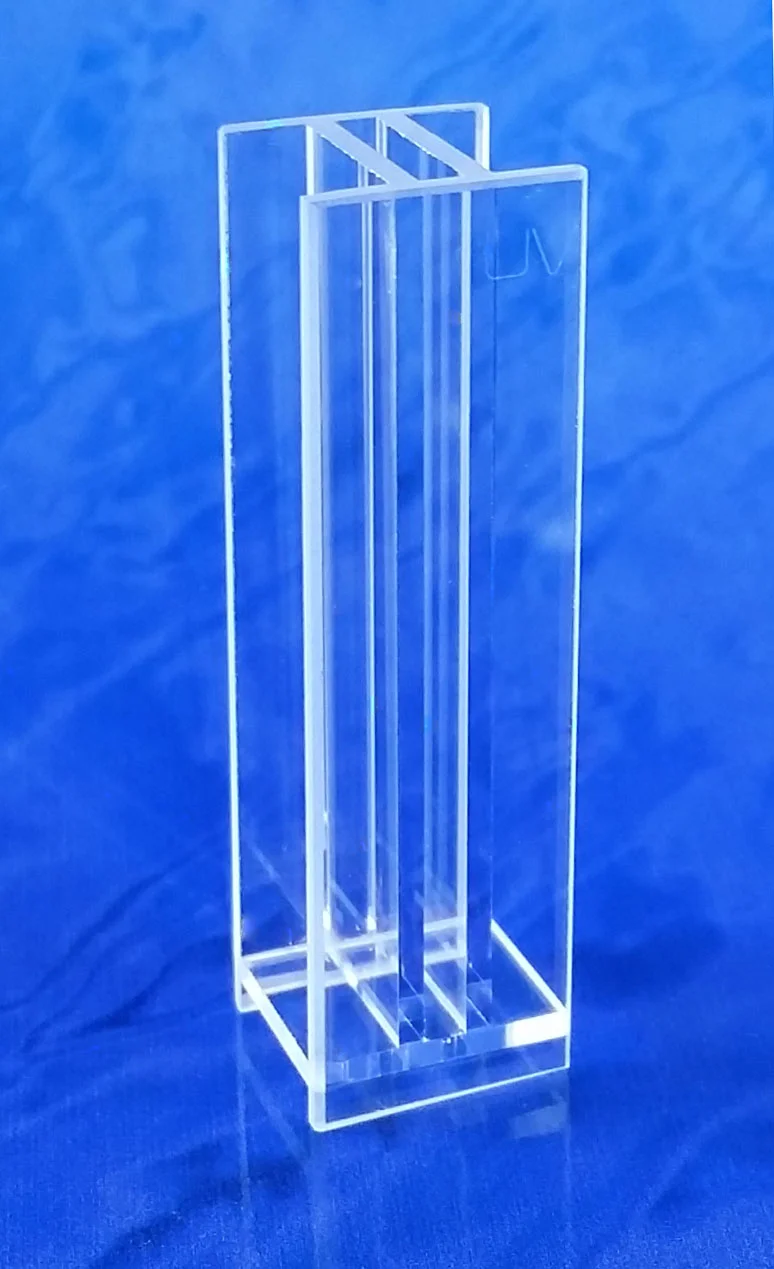

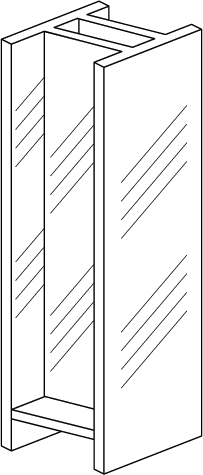

Type 52 Dual Pathlength Fluorescence Cuvette (Lightpaths: 10x1-10x5mm)
Type 52 Dual Pathlength Fluorescence Cuvette (Lightpaths: 10x1-10x5mm)
from $162.00
FireflySci's Type 52 dual pathlength fluorescence cell. You can use this cell as a 10mm lightpath cell then rotate it 90º use it as a 1-5mm cell.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 52 Dual Pathlength Fluorescence Cuvette:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a rigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in several different materials: (Optical Glass, UV Quartz, IR Quartz)
- Lightpaths of 10mm available with various inner widths (10x1-10x5mm).
- Base thickness- 9mm
- Four windows and base optically polished.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Capacity |
|---|---|---|---|---|---|---|---|
| 10x1mm | Open Top | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 1.0mm | 0.350ml |
| 10x2mm | Open Top | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 2.0mm | 0.700ml |
| 10x3mm | Open Top | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 3.0mm | 1.050ml |
| 10x4mm | Open Top | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 4.0mm | 1.400ml |
| 10x5mm | Open Top | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 5.0mm | 1.750ml |
