Macro Cuvettes
Fluorescence Cells with Macro capacities (1.4ml-35.0ml)
Type 58FL Macro Fluorescence Flow Through Cell (Lightpath: 10mm)
Type 58FL Macro Fluorescence Flow Through Cell (Lightpath: 10mm)
$904.00

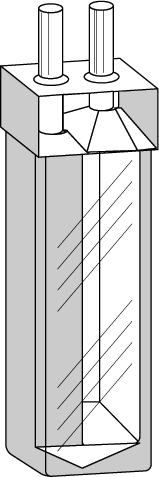

FireflySci's Type 58FL Macro Fluorometer Flow Through Cell with fused on vertical quartz tubes. Enables a constant flow through the observation chamber.
Quantity:
Features of FireflySci Type 58FL Macro Spectrophotometer Flow Through Cell with Top Tubes:
- Four windows and the base polished.
- Inlet/ Outlet tubes: OD4 X ID2 X L10mm
- Height is without tubes
- Tubes are made of quartz
- Available in UV Quartz.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Inner Height | Capacity |
|---|---|---|---|---|---|---|---|---|
| 10mm | Flow Through | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 7.0mm | 36.0mm | 2.520ml |
Summary Block
