Macro Cuvettes
Fluorescence Cells with Macro capacities (1.4ml-35.0ml)

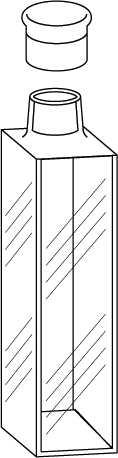

Type 11FL Macro Fluorescence Cuvette with Quartz Cap (Lightpaths: 5-40mm)
Type 11FL Macro Fluorescence Cuvette with Quartz Cap (Lightpaths: 5-40mm)
from $374.00
FireflySci's fluorescent incarnation of the Type 11. This cell provides a transparent, airtight glass cap, which provides an airtight seal, ensured by the ground finish on the inside of the cap and the top of the cuvette.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 11FL Spectrophotometer Cuvette with Glass Cap:
- Hand made ensuring the highest quality optical polish with no defects.
- Every cell is thoroughly inspected before leaving the factory.
- Firefly cuvettes are guaranteed to give you the best optical transmission.
- Fire fused to ensure the best bonding.
- Several different materials available: (Optical Glass, UV Quartz, IR Quartz)
- Lightpaths from 5 mm up to 40 mm available.
- Four windows and the base optically polished.
- Includes airtight glass cap.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Capacity |
|---|---|---|---|---|---|---|---|
| 5mm | Glass Cap | 7.5mm | 12.5mm | 55.0mm | 5.0mm | 10.0mm | 1.700ml |
| 10mm | Glass Cap | 12.5mm | 12.5mm | 55.0mm | 10.0mm | 10.0mm | 3.500ml |
| 20mm | Glass Cap | 22.5mm | 12.5mm | 55.0mm | 20.0mm | 10.0mm | 7.000ml |
| 40mm | Glass Cap | 42.5mm | 12.5mm | 55.0mm | 40.0mm | 10.0mm | 14.000ml |
