Flow Through Cells
A variety of flow through cells in different configurations for fluorometric experiments where a constantly flowing sample can be passed through the observation chamber. Each fluorescence cell has 90º windows optically polished for excitation and emission.

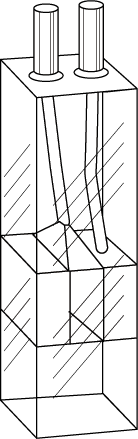

Type 59FL Micro Fluorescence Flow Through Cell (Lightpath: 10mm)
Type 59FL Micro Fluorescence Flow Through Cell (Lightpath: 10mm)
from $691.00
FireflySci's fluorescence flow through cell with a micro-sized sample chamber.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 59FL Micro Fluorescence Flow Through Cell:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in several different materials: (UV Quartz and IR Quartz)
- Available in 10mm lightpath
- Four windows and base polished
- Inlet/outlet tube dimensions: OD 3mm x ID 1.5mm x L 8mm
- Tubes are made of quartz
| Lightpath | Outer Length | Outer Width | Outer Height | Chamber Length | Chamber Width | Chamber Height | Z-Dimension | Capacity |
|---|---|---|---|---|---|---|---|---|
| 10mm | 12.5mm | 12.5mm | 45.0mm | 10.0mm | 4.0mm | 11.0mm | 15.0mm | 0.440ml |
