Flow Through Cells
A variety of flow through cells in different configurations for spectrophotometric experiments where a constantly flowing sample can be passed through the observation chamber.

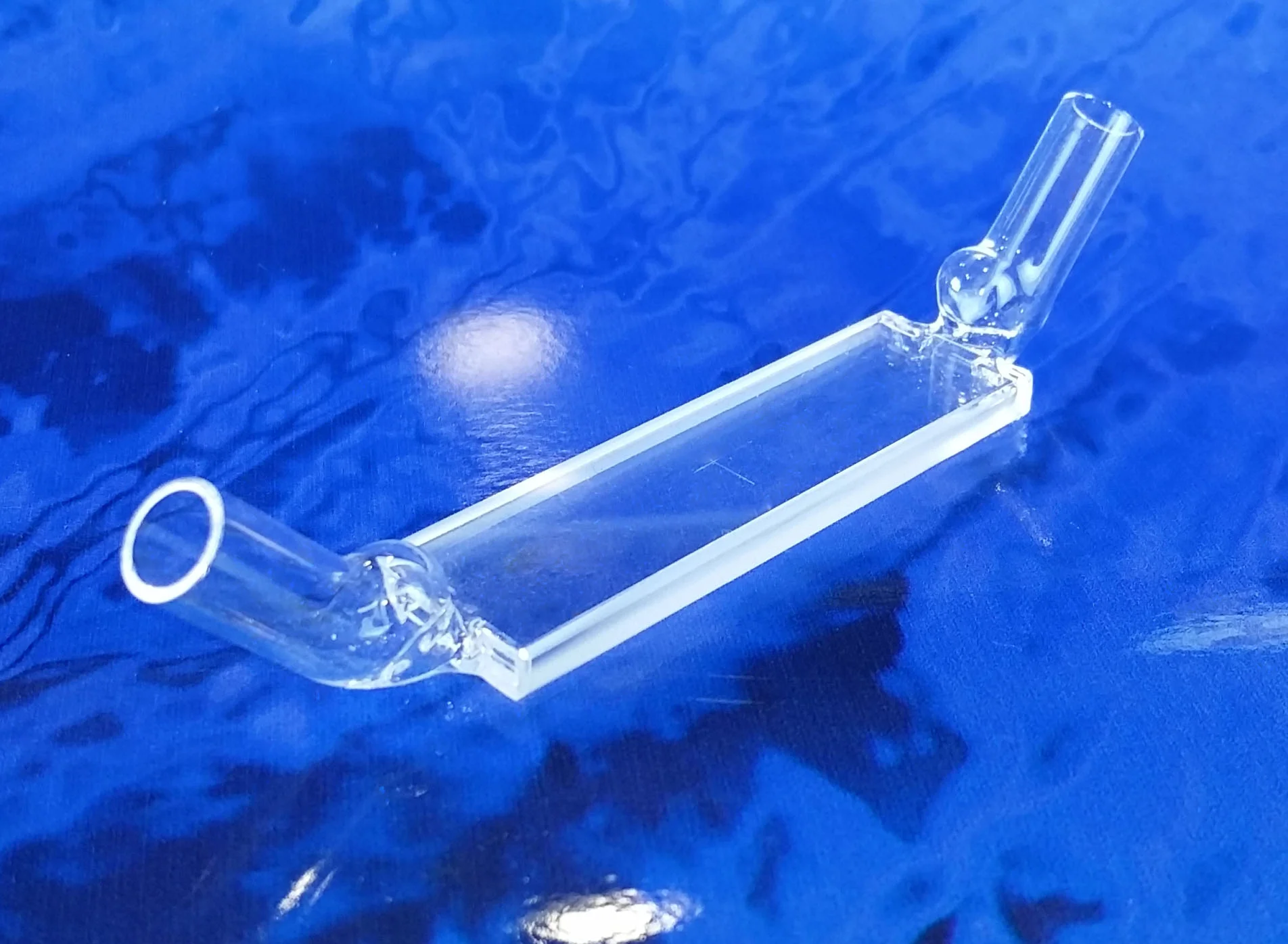

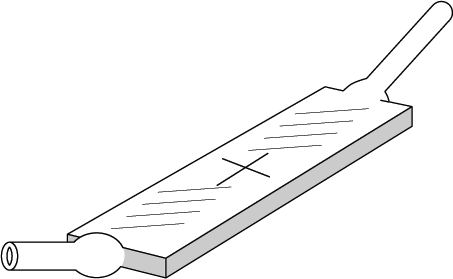

Type 78 Electrophoresis Flow Through Cell (Lightpath: 2mm)
Type 78 Electrophoresis Flow Through Cell (Lightpath: 2mm)
from $873.00
Flow through cell for use in electrophoresis.
Lightpath:
Material:
Quantity:
Features of Type 78 Electrophoresis Flow Through Cell:
- Highly accurate results, only need to test sample once.
- High quality: Firefly cuvettes are made with the best quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Available in UV Quartz.
- Available in 2mm lightpath.
- Two windows optically polished.
- Inlet/outlet tube dimension: OD 7mm x ID 5mm
- Tubes are made of quartz
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Capacity |
|---|---|---|---|---|---|---|---|
| 2mm | Flow Through | 4.5mm | 12.5mm | 50.0mm | 2.0mm | 10.0mm | 0.950ml |
