Type 49 Micro Demountable Flow Through Cell (Lightpaths: 0.05-2mm)


Type 49 Micro Demountable Flow Through Cell (Lightpaths: 0.05-2mm)

from 271.00

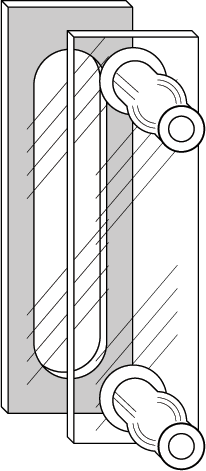

Firefly's Type 49 demountable flow through cell with sides tubes enables a constant flow through the observation chamber. The demountable slides enables a user to insert a small sample and reassemble the cuvette.

Add To Cart

Features of FireflySci Type 49 Demountable Flow Through Cell with Side Tubes:

  • Highly accurate results, only need to test sample once.

  • Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.

  • Made by hand, ensuring high quality optical polishing with no defects.

  • Each cell goes through a vigorous inspection process before leaving our factory.

  • Fire-fused to ensure that cuvettes are robust and durable.

  • Comes in several different materials: (UV Quartz & IR Quartz)

  • Two windows polished

  • Inlet/ Outlet tubes: OD5 X ID3 X L15mm

  • Height is without tubes.

  • Lightpaths from 0.1-2mm available.

  • Tubes are made of quartz.

  • Thickness of cover slide is 1.25mm.

  • O-demountable flow-through spectrophotometer cuvette with removable window

LightpathTopOuter LengthOuter WidthOuter HeightChamber LengthChamber WidthChamber HeightCapacity
0.05mmFlow Through2.6mm12.5mm45.0mm0.05mm9.0mm38.0mm15µl
0.1mmFlow Through2.6mm12.5mm45.0mm0.10mm9.0mm38.0mm30µl
0.2mmFlow Through2.7mm12.5mm45.0mm0.20mm9.0mm38.0mm60µl
0.5mmFlow Through3.0mm12.5mm45.0mm0.50mm9.0mm38.0mm150µl
1mmFlow Through3.5mm12.5mm45.0mm1.00mm9.0mm38.0mm300µl
2mmFlow Through4.5mm12.5mm45.0mm2.00mm9.0mm38.0mm600µl
