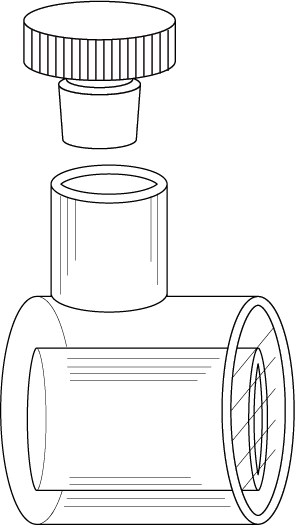

Type 36 Short Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 0.05-5mm)


Type 36 Short Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 0.05-5mm)

from $765.00

Short pathlength cylindrical polarimeter cell with PTFE stopper.

Lightpath:
Material:
Quantity:
Add To Cart

Features of FireflySci Type 36 Short Cylindrical Polarimeter Cell:

  • Highly accurate results, only need to test sample once.
  • Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
  • Made by hand, ensuring high quality optical polishing with no defects.
  • Each cell goes through a rigorous inspection process before leaving our factory.
  • Fire-fused to ensure that cuvettes are robust and durable.
  • Comes in several different materials: (Optical Glass, UV Quartz, IR Quartz)
  • Lightpaths from 0.05-5mm available
  • Two windows optically polished.
  • Includes PTFE stopper.
LightpathTopOuter LengthOuter HeightOuter DiameterInner DiameterInner LengthCapacity
0.05mmPTFE Stopper23.0mm32.0mm22.0mm13.0mm0.05mm1.075ml
0.1mmPTFE Stopper23.0mm32.0mm22.0mm13.0mm0.10mm2.150ml
0.2mmPTFE Stopper23.0mm32.0mm22.0mm13.0mm0.20mm2.180ml
0.5mmPTFE Stopper23.0mm32.0mm22.0mm13.0mm0.50mm2.220ml
1mmPTFE Stopper23.0mm32.0mm22.0mm13.0mm1.00mm2.310ml
2mmPTFE Stopper23.0mm32.0mm22.0mm13.0mm2.00mm2.490ml
5mmPTFE Stopper23.0mm32.0mm22.0mm13.0mm5.00mm3.020ml
