Cylindrical Polarimeter Cells
Cells for use in polarimeters and spectrophotometers, which contain a cylindrically shaped sample chamber.

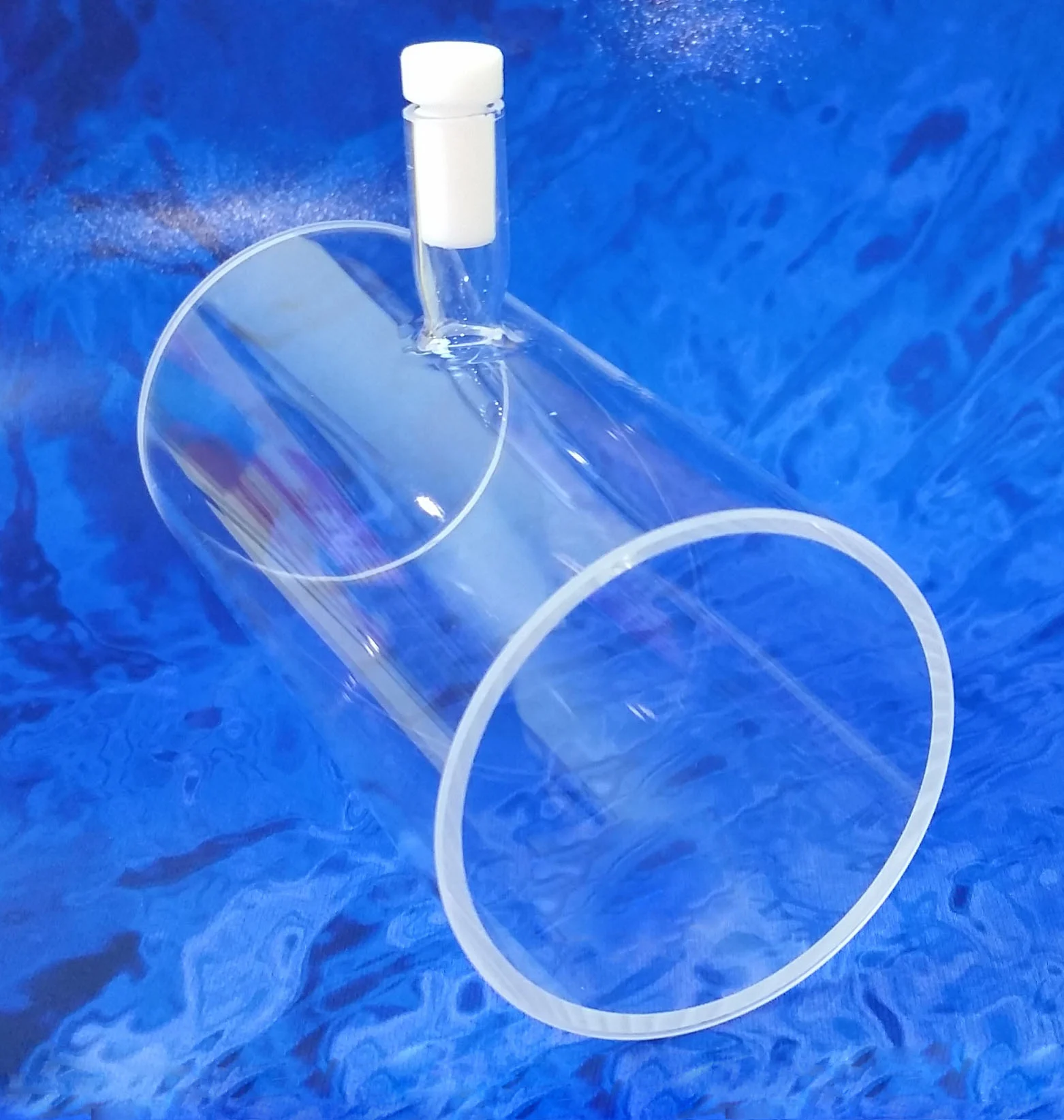

Type 35 Large Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 10-100mm)
Type 35 Large Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 10-100mm)
from $305.00
Firefly's medium lightpath polarimeter cell with a large surface area.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 35 Large Cylindrical Polarimeter Cell:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a rigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in several different materials: (Optical Glass, UV Quartz, IR Quartz)
- Lightpaths from 10-100mm available
- Two windows optically polished.
- Includes PTFE stopper.
| Lightpath | Top | Outer Length | Outer Height | Outer Diameter | Inner Diameter | Inner Length | Capacity |
|---|---|---|---|---|---|---|---|
| 10mm | PTFE Stoppers | 12.5mm | 58.0mm | 50.0mm | 47.0mm | 10.0mm | 17.000ml |
| 20mm | PTFE Stoppers | 22.5mm | 58.0mm | 50.0mm | 47.0mm | 20.0mm | 34.000ml |
| 50mm | PTFE Stoppers | 52.5mm | 58.0mm | 50.0mm | 47.0mm | 50.0mm | 85.000ml |
| 100mm | PTFE Stoppers | 102.5mm | 58.0mm | 50.0mm | 47.0mm | 100.0mm | 170.000ml |
