Cylindrical Polarimeter Cells
Cells for use in polarimeters and spectrophotometers, which contain a cylindrically shaped sample chamber.

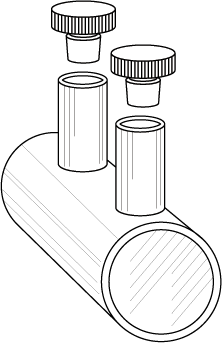

Type 34 Large Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 50-200mm)
Type 34 Large Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 50-200mm)
from $196.00
FireflySci's long lightpath cylindrical polarimeter cell with two PTFE stopper for keeping the contents firmly secured.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 34 Cylindrical Polarimeter Cell:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a rigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in several different materials: (Optical Glass, UV Quartz, IR Quartz)
- Lightpaths from 50-200mm available
- Two windows optically polished.
- Includes PTFE stoppers.
| Lightpath | Top | Outer Length | Outer Diameter | Outer Height | Chamber Length | Chamber Diameter | Capacity |
|---|---|---|---|---|---|---|---|
| 50mm | PTFE Stoppers | 52.5mm | 22.0mm | 35.5mm | 50.0mm | 19.0mm | 14.000ml |
| 100mm | PTFE Stoppers | 102.5mm | 22.0mm | 35.5mm | 100.0mm | 19.0mm | 28.000ml |
| 200mm | PTFE Stoppers | 202.5mm | 22.0mm | 35.5mm | 200.0mm | 19.0mm | 56.000ml |
