Colorimeter Cells
Cells made from Optical Glass with a wavelength range of 340-2,500nm for use in colorimeters.

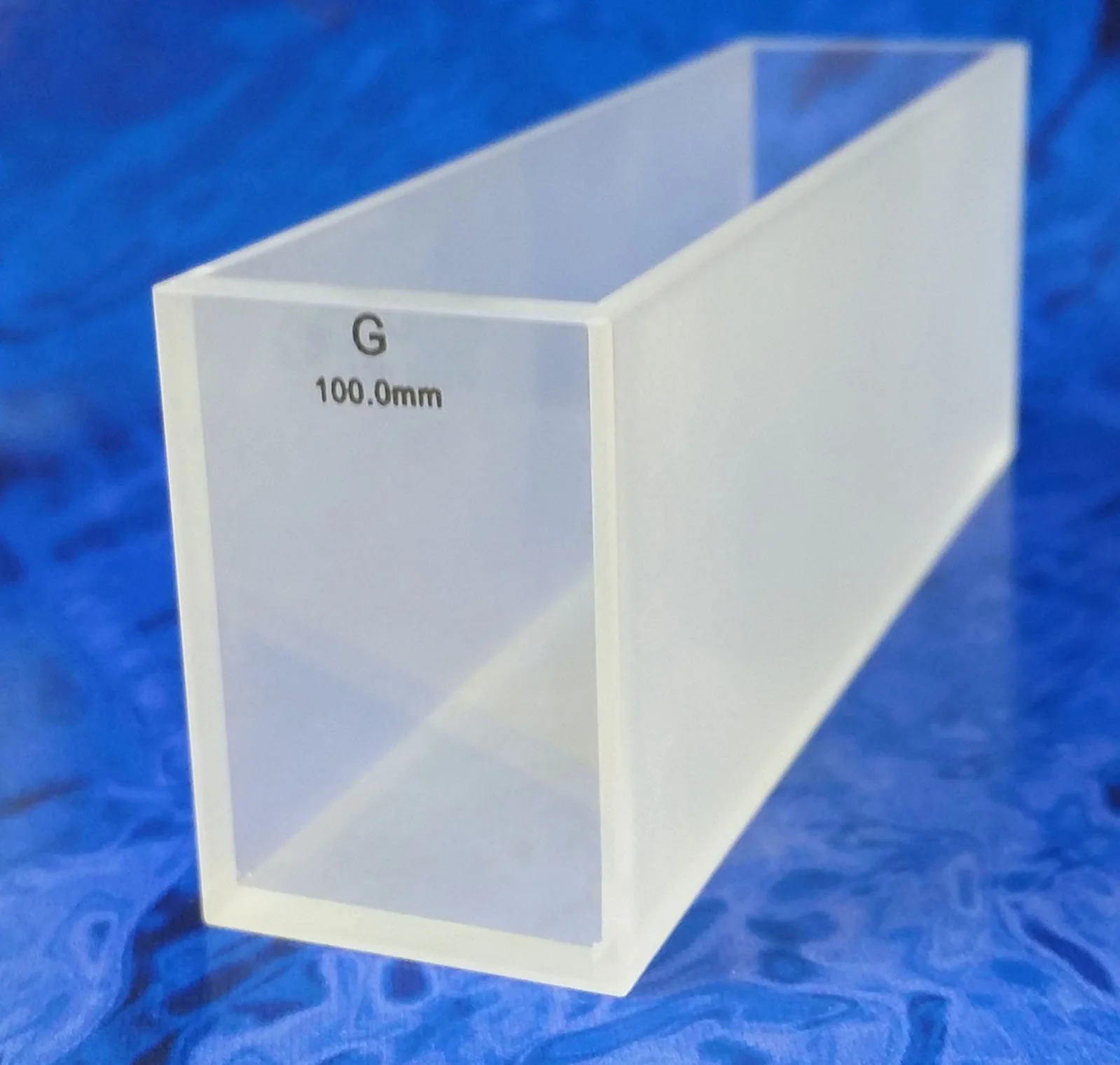

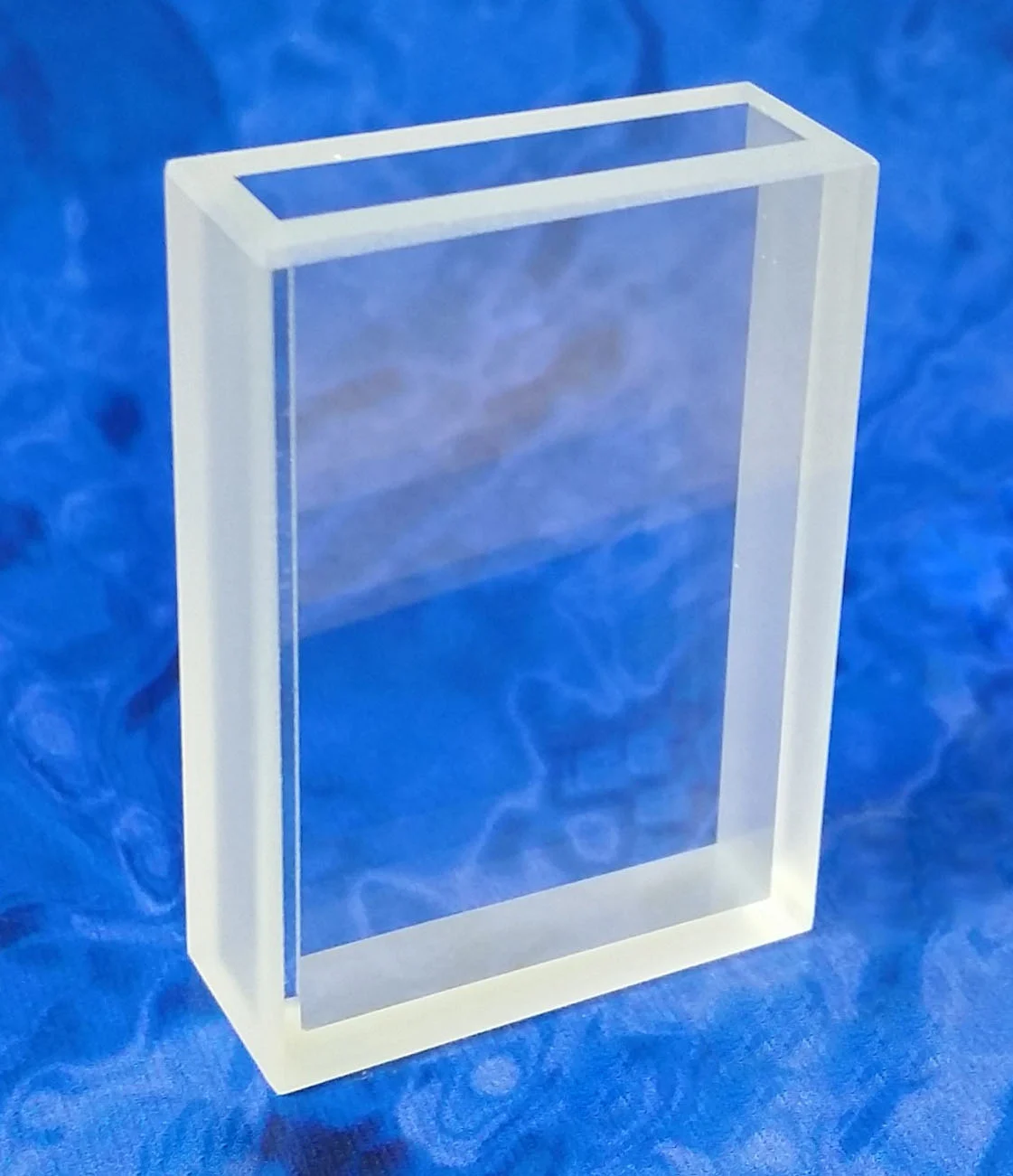

Type 96 X-Rite Colorimeter Cell (Lightpaths: 2.5-100mm)
Type 96 X-Rite Colorimeter Cell (Lightpaths: 2.5-100mm)
from $166.00
Colorimeter cell made from Optical Glass.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 96 Colorimeter Cell:
- Highly accurate results, only need to test sample once.
- Accuracy and high quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Available in Optical Glass
- Lightpaths from 2.5-100mm available
- Two windows optically polished.
- Made for X-Rite colorimeters.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Capacity |
|---|---|---|---|---|---|---|---|
| 2.5mm | Open Top | 8.5mm | 28.0mm | 40.0mm | 2.5mm | 24.0mm | 1.800ml |
| 5mm | Open Top | 11.0mm | 28.0mm | 40.0mm | 5.0mm | 24.0mm | 3.600ml |
| 10mm | Open Top | 16.0mm | 28.0mm | 40.0mm | 10.0mm | 24.0mm | 7.200ml |
| 20mm | Open Top | 26.0mm | 28.0mm | 40.0mm | 20.0mm | 24.0mm | 14.000ml |
| 40mm | Open Top | 46.0mm | 28.0mm | 40.0mm | 40.0mm | 24.0mm | 28.000ml |
| 100mm | Open Top | 106.0mm | 28.0mm | 40.0mm | 100.0mm | 24.0mm | 70.000ml |
