Colorimeter Cells
Cells made from Optical Glass with a wavelength range of 340-2,500nm for use in colorimeters.

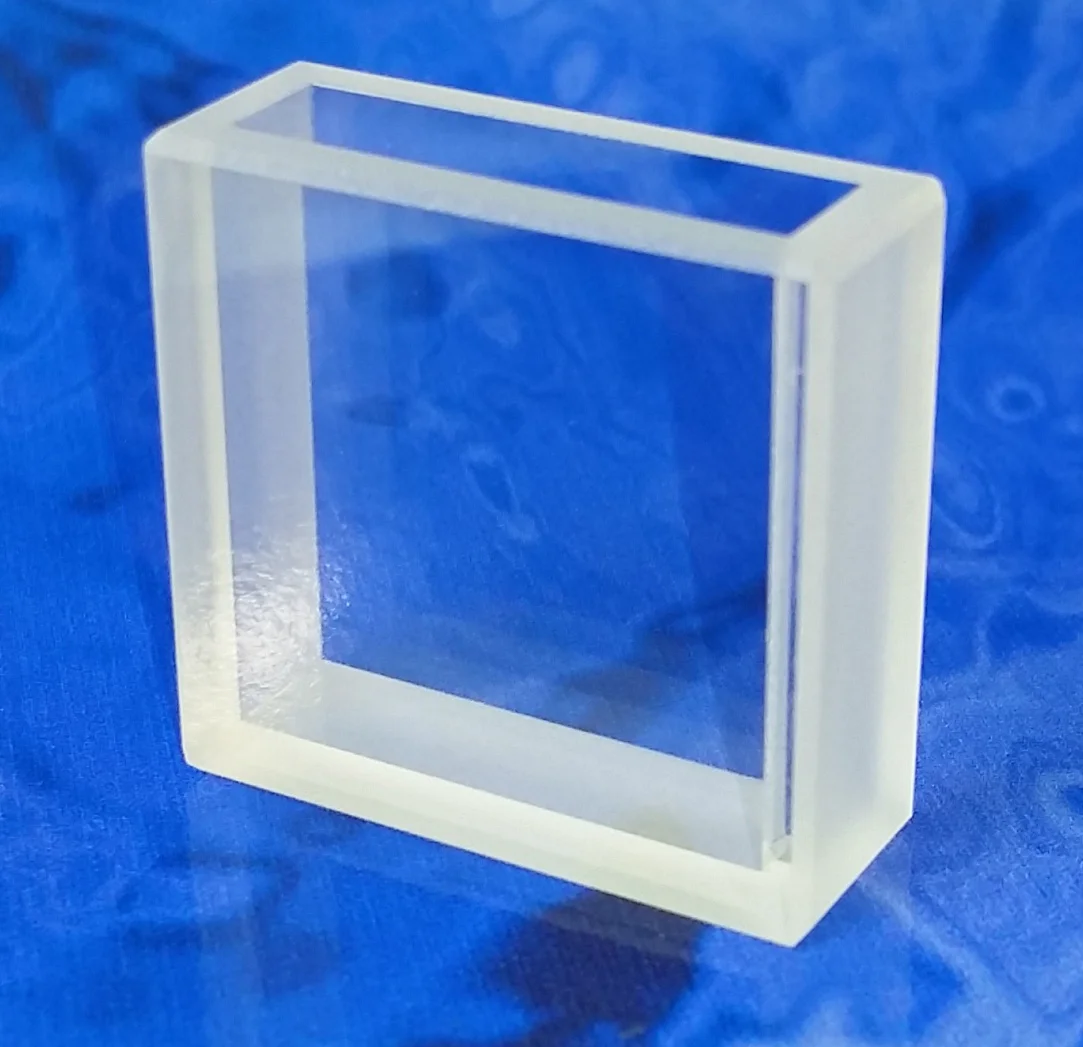

Type 529 Small Rectangular Colorimeter Cell (Lightpath: 5mm)
Type 529 Small Rectangular Colorimeter Cell (Lightpath: 5mm)
from $308.00
Small rectangular absorption cell for use in colorimeters.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 529 Small Colorimeter Cell:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Available in Optical Glass
- 5mm lightpath available
- Two windows optically polished.
- Fits ACS, Data Color, Hunter and several other colorimeters.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Capacity |
|---|---|---|---|---|---|---|---|
| 5mm | Open Top | 9.0mm | 24.0mm | 23.20mm | 5.0mm | 20.0mm | 2.32ml |
