Type 26 Short Anaerobic Cell with Glass Pouch (Lightpaths: 2-10mm)


Type 26 Short Anaerobic Cell with Glass Pouch (Lightpaths: 2-10mm)

from 275.00

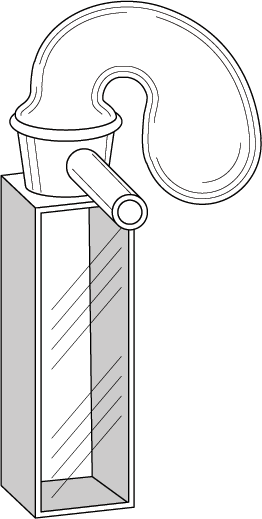

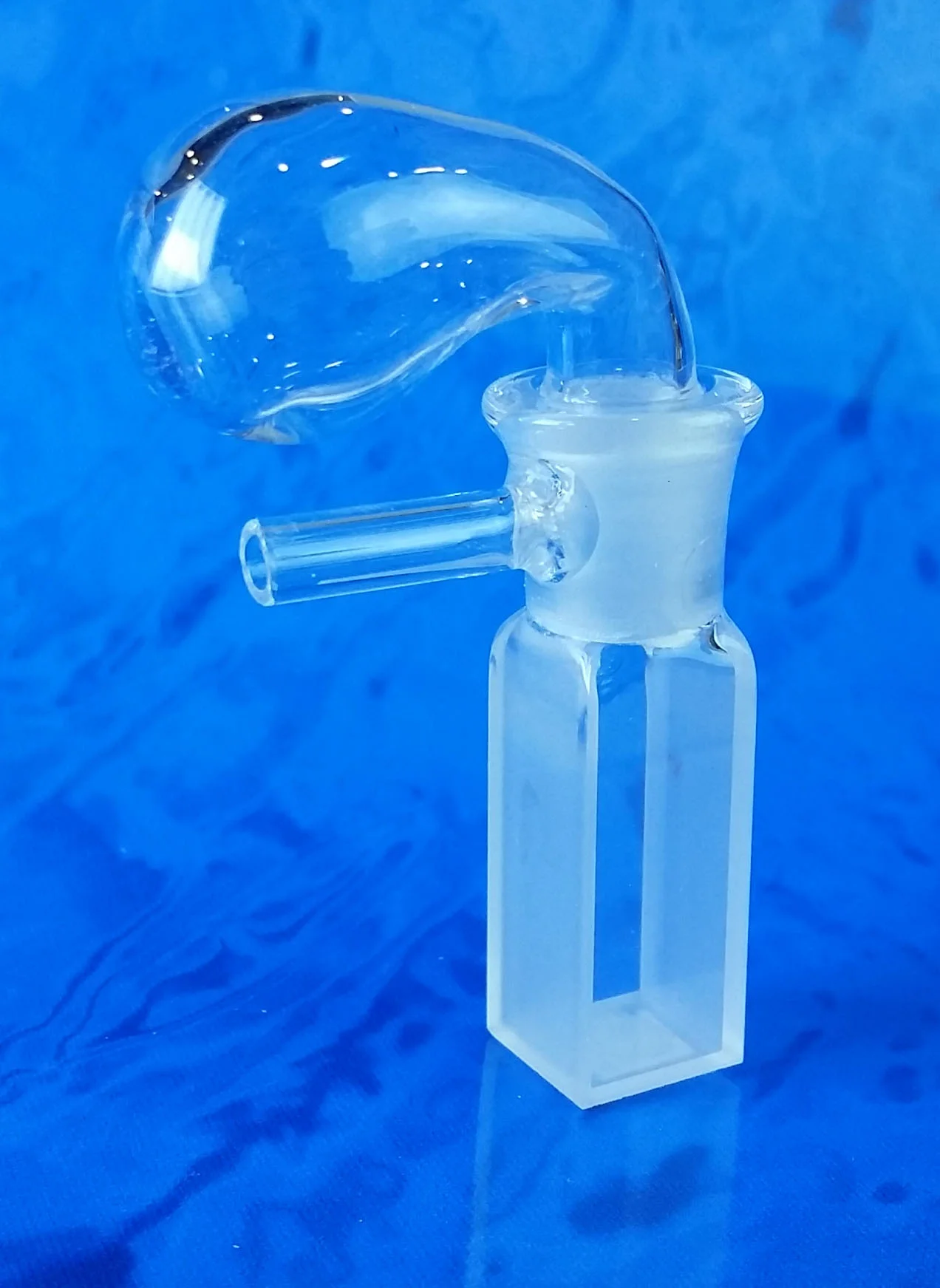

The Type 26 cuvette contains an inlet tube and a glass pouch chamber for catching excess gas produced by anaerobic experiments.

Add To Cart

Features of FireflySci Type 26 Spectrophotometer Cuvette:

  • Highly accurate results, only need to test sample once.

  • Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.

  • Made by hand, ensuring high quality optical polishing with no defects.

  • Each cell goes through a vigorous inspection process before leaving our factory.

  • Fire-fused to ensure that cuvettes are robust and durable.

  • Comes in several different materials: (UV Quartz and IR Quartz)

  • Available in 2-10mm lightpaths.

  • Two windows optically polished.

  • Overall height with the pouch is approximately 65mm.

  • Inlet/outlet tube dims: OD 5mm x ID 3mm

  • Neck dimensions: OD 14mm x ID 10mm.

LightpathTopOuter LengthOuter WidthOuter HeightInner LengthInner WidthInner HeightCapacity
2mmGlass Pouch4.5mm12.5mm65mm2.0mm10.0mm30.0mm0.500ml
5mmGlass Pouch7.5mm12.5mm65mm5.0mm10.0mm30.0mm1.250ml
10mmGlass Pouch12.5mm12.5mm65mm10.0mm10.0mm30.0mm2.500ml
