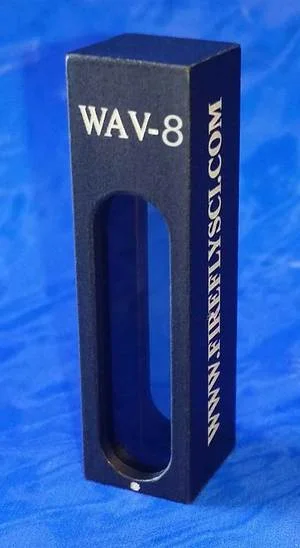

WAV-8 NIR Wavelength Accuracy Standard (700-3000nm)


WAV-8 NIR Wavelength Accuracy Standard (700-3000nm)

1,200.00

FireflySci's solution for wavelength calibration through the NIR range (700-3000nm).

Quantity:
Add To Cart

Capabilities:

  • Wavelength accuracy in the VIS and NIR range (700-3000nm)

Product specs:

  • Wavelength tolerance: +/- 0.2nm (700-1500nm); +/- 0.5nm (2000-3000nm).
  • Approximate wavelength peaks: 707, 747, 803.7, 846, 876.6, 944, 1007, 1518, 1918, 2530, 2719, 3045nm

Benefits of using the WAV-8 NIR:

  • Highly accurate and consistent spectrophotometer calibration every time
  • Never have to be replaced
  • Patented nano-deposition manufacturing process means that filters never have to be recalibrated if used properly
  • Scratch-resistant coating protects optical surfaces
  • Can be used in any spectrophotometer (with standard 12.5 x 12.5 x 45mm holder)
  • NIST-compliant
  • For each WAV-NIR we provide a wavelength & photometric trace-file with 0.1nm steps.

Included with WAV-8 NIR:

  • Instructions are included with every WAV-8 NIR filter.
  • Certificate of calibration with NIST traceability.

All Firefly calibration standards are NIST traceable and NIST compliant. Performance of all Firefly reference calibration standards, including but not limited to this standard, meet or exceed NIST requirements.


Unless recalibrations on a periodic basis are required by QA procedures of a customer’s organization, all Firefly solid-state calibration standards do not need to be re-calibrated due to materiaI aging.

Where required, Firefly will provide periodic re-calibrations. Contact us for more information.

All of our calibration standards are proudly made in North America.

SAMPLE WAV-8 NIR CERTIFICATE OF CALIBRATION
