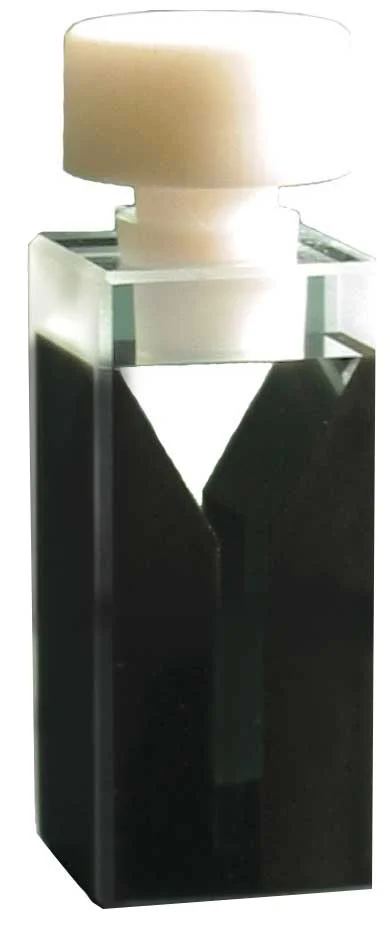

Type 520M Short Micro Black Cuvette with PTFE Stopper (Lightpaths: 5-20mm)


Type 520M Short Micro Black Cuvette with PTFE Stopper (Lightpaths: 5-20mm)

from 216.00

The Type 520M is a short version of the Type 17M but contains a PTFE Stopper rather than a PTFE Cover.

Lightpath:
Material:
Quantity:
Add To Cart

Features of FireflySci Type 520M Micro Spectrophotometer Cuvette:

  • Highly accurate results, only need to test sample once.
  • Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
  • Made by hand, ensuring high quality optical polishing with no defects.
  • Each cell goes through a vigorous inspection process before leaving our factory.
  • Fire-fused to ensure that cuvettes are robust and durable.
  • Comes in several different materials: (UV Quartz & IR Quartz)
  • Lightpaths from 5-20mm available
  • Two windows optically polished.
  • Contains black walls for blocking out stray light.
  • Base thickness of 3mm
  • Cuvette height is 29mm
  • Includes PTFE Stopper
LightpathTopOuter LengthOuter WidthOuter HeightInner LengthInner WidthCapacity
5mmPTFE Stopper7.5mm12.5mm29.0mm5.0mm2.0mm0.200ml
10mmPTFE Stopper12.5mm12.5mm29.0mm10.0mm2.0mm‏0.400ml
20mmPTFE Stopper22.5mm12.5mm29.0mm20.0mm2.0mm0.800ml
