Type 52 Dual Pathlength Fluorescence Cuvette (Lightpaths: 10x1-10x5mm)


Type 52 Dual Pathlength Fluorescence Cuvette (Lightpaths: 10x1-10x5mm)

from $135.00

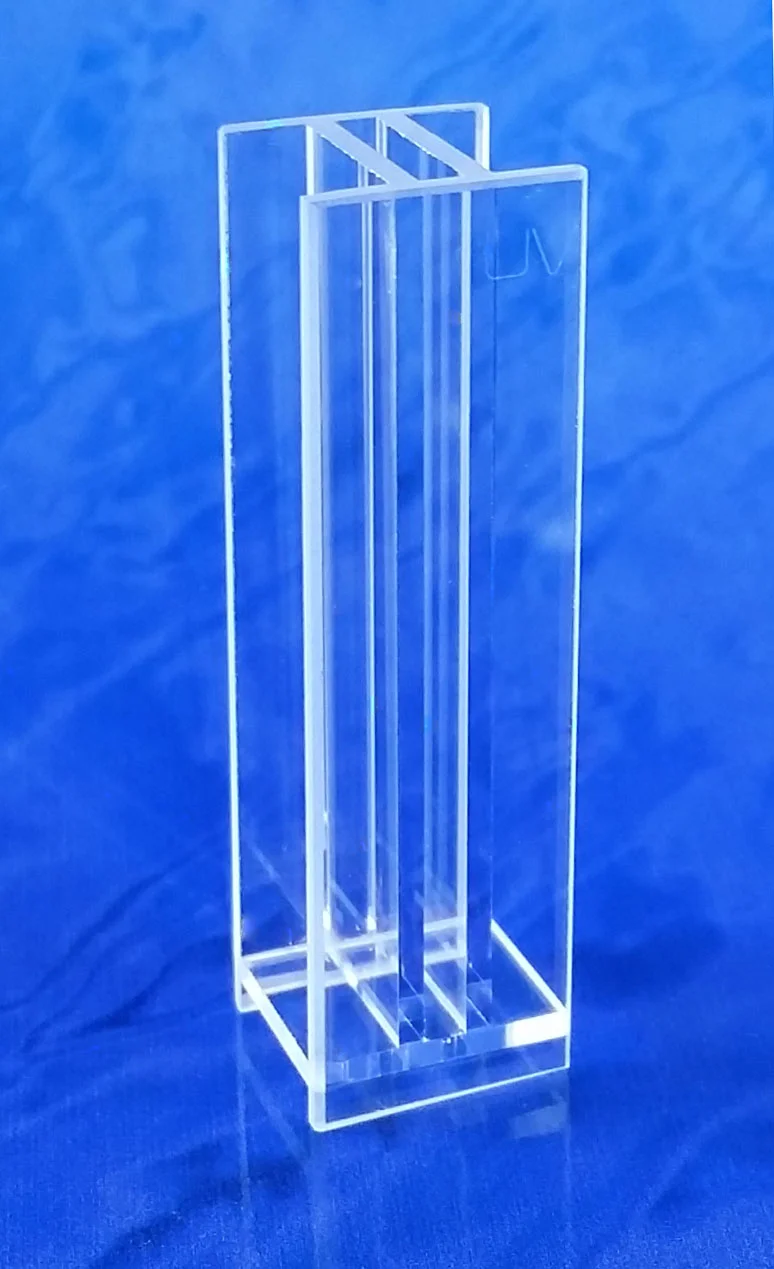

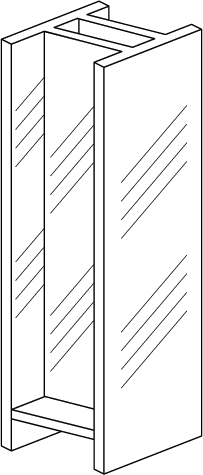

FireflySci's Type 52 dual pathlength fluorescence cell. You can use this cell as a 10mm lightpath cell then rotate it 90º use it as a 1-5mm cell.

Lightpath:
Material:
Quantity:
Add To Cart

Features of FireflySci Type 52 Dual Pathlength Fluorescence Cuvette:

  • Highly accurate results, only need to test sample once.
  • Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
  • Made by hand, ensuring high quality optical polishing with no defects.
  • Each cell goes through a rigorous inspection process before leaving our factory.
  • Fire-fused to ensure that cuvettes are robust and durable.
  • Comes in several different materials: (Optical Glass, UV Quartz, IR Quartz)
  • Lightpaths of 10mm available with various inner widths (10x1-10x5mm).
  • Base thickness- 9mm
  • Four windows and base optically polished.
LightpathTopOuter LengthOuter WidthOuter HeightInner LengthInner WidthCapacity
10x1mmOpen Top12.5mm12.5mm45.0mm10.0mm1.0mm0.350ml
10x2mmOpen Top12.5mm12.5mm45.0mm10.0mm2.0mm0.700ml
10x3mmOpen Top12.5mm12.5mm45.0mm10.0mm3.0mm1.050ml
10x4mmOpen Top12.5mm12.5mm45.0mm10.0mm4.0mm1.400ml
10x5mmOpen Top12.5mm12.5mm45.0mm10.0mm5.0mm1.750ml
