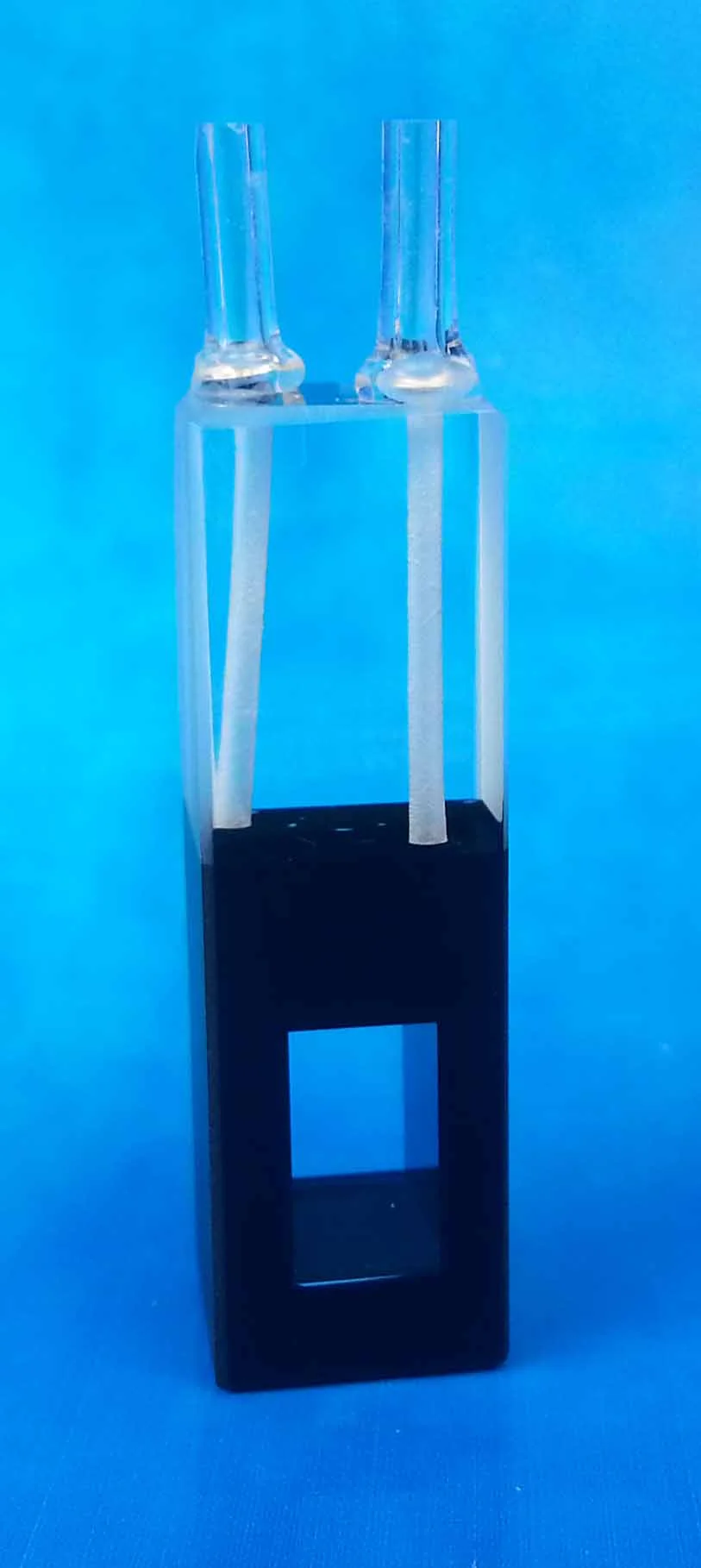

Type 502M Semi-Micro Black Flow Through Cell (Lightpath: 10mm)


Type 502M Semi-Micro Black Flow Through Cell (Lightpath: 10mm)

from 343.00

Black-walled semi-micro spectrophotometer flow cell with 6.5x11mm window

Lightpath:
Material:
Z-dimension:
Quantity:
Add To Cart

Features of FireflySci Type 502M Semi-Micro Black Flow Through Cell:

  • Highly accurate results, only need to test sample once.
  • Accuracy and high quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
  • Made by hand, ensuring high quality optical polishing with no defects.
  • Each cell goes through a vigorous inspection process before leaving our factory.
  • Fire-fused to ensure that cuvettes are robust and durable.
  • Comes in Optical GlassUV Quartz
  • Available in 10mm lightpath with 2 z-dimensions (8.5 & 15mm)
  • Contains black walls to block out stray light
  • Two windows polished
  • Inlet/outlet tube dimension: OD 4mm x ID 2mm
  • Tubes are made of quartz
LightpathTopOuter LengthOuter WidthOuter HeightChamber LengthChamber WidthChamber HeightZ-DimensionCapacity
10mmFlow Through12.5mm12.5mm38.5mm10.0mm6.5mm11.0mm8.5mm0.750ml
10mmFlow Through12.5mm12.5mm51.0mm10.0mm6.5mm11.0mm15.0mm0.750ml
