Evacuable Dies- Type KB


Evacuable Dies- Type KB

from 572.00

Dies suitable for producing discs of 3, 5, 6, 8, 10, 13, and 16mm diameter as available as standard within the size range for the KB series. Non-standard sizes are available on request.

Disc size:
Quantity:
Add To Cart

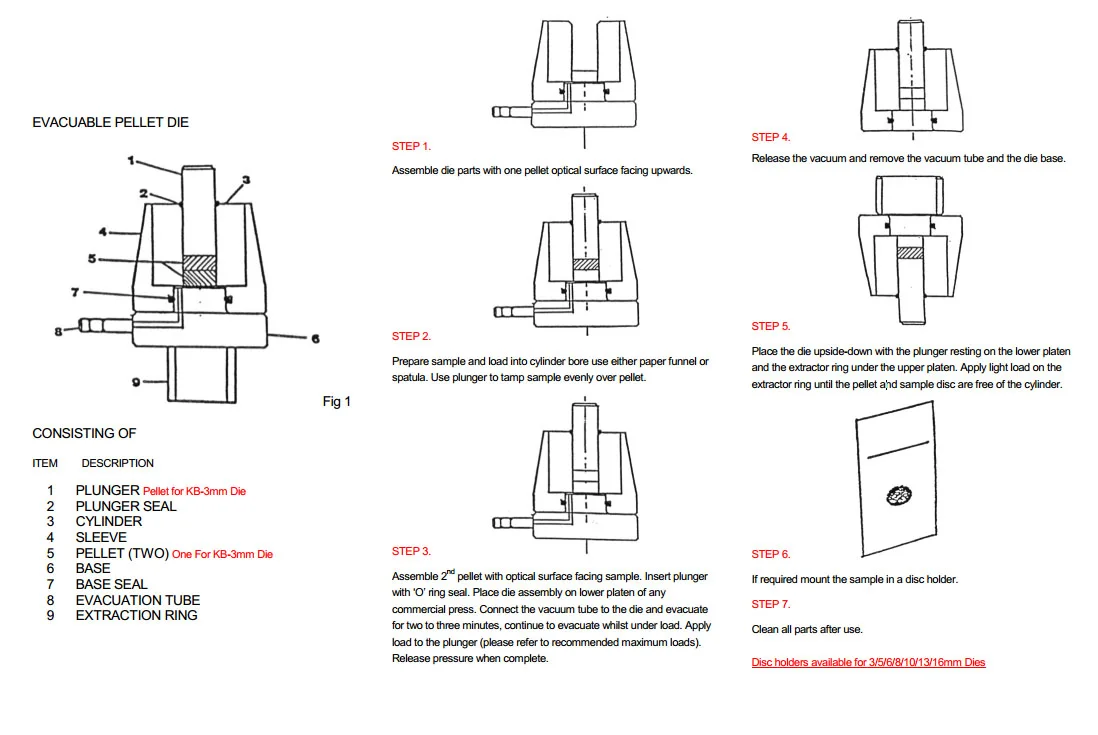

KBr Disc Technique: This widely practiced method consists of grinding and mixing a sample with dry KBr or KCl powder, which is then compressed within an evacuated die to produce a transparent disc, since KBr and KCl are transparent from the ultra-violet well into the infrared. The method may be used for investigation in the ultra-violet and the visible as well as the infrared region.

  • All dies in the KB series are constructed entirely of stainless tool steel, and parts are precision machined.
  • Pellets are optically flat and mirror polished.
  • Tungsten carbide pellets and component parts can be supplied to special order.
  • Dies are supplied with black anodised sleeves.

Maximum load limits:

  • 3mm die- 0.5 tons
  • 5mm die- 2 tons
  • 6mm die- 2 tons
  • 8mm die- 5 tons
  • 10mm die- 7 tons
  • 13mm die- 10 tons
  • 16mm die- 15 tons



Please allow one week for delivery.
