Flow Through Cells
A variety of flow through cells in different configurations for fluorometric experiments where a constantly flowing sample can be passed through the observation chamber. Each fluorescence cell has 90º windows optically polished for excitation and emission.

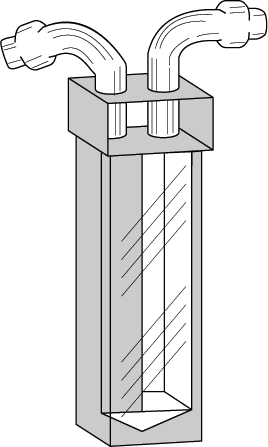

Type 45FL Macro Fluorescence Flow Through Cell with Detachable Tubes (Lightpath: 10mm)
Type 45FL Macro Fluorescence Flow Through Cell with Detachable Tubes (Lightpath: 10mm)
from $445.00
FireflySci's macro fluorometer flow through cell with detachable inlet/outlet quartz tubes. Enables a constant flow through the 2.8ml capacity observation chamber.
Lightpath:
Material:
Quantity:
Features of FireflySci Type 45FL Macro Spectrophotometer Flow Through Cell with Detachable Tubes:
- Highly accurate results, only need to test sample once.
- Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
- Made by hand, ensuring high quality optical polishing with no defects.
- Each cell goes through a vigorous inspection process before leaving our factory.
- Fire-fused to ensure that cuvettes are robust and durable.
- Comes in several different materials: (UV Quartz and IR Quartz)
- Available in 10mm lightpath
- Three windows and base polished
- Inlet/outlet tube dimension: OD 4mm x ID 2mm
- Tubes are made of quartz
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Inner Height | Capacity |
|---|---|---|---|---|---|---|---|---|
| 10mm | Flow Through | 12.5mm | 12.5mm | 50.0mm | 10.0mm | 7.0mm | 40.0mm | 2.800ml |
