Particle Sizing, Flow Cytometry, Cell Counting and Particle Analysis Cells
FireflySci's wheelhouse is providing custom flow cells for our many OEM customers, who have come to rely on our precision and design acumen. These are a few of our stock cytometer cells, which can either be ordered outright or used as launching pad for your custom designs.
If you don't find what you're looking for send us a sketch and we'll make it for you! Build a custom cell here.

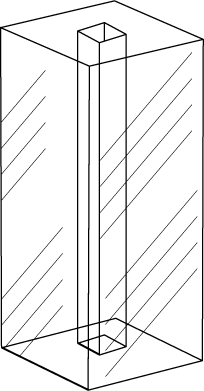

Type 77 Particle Analysis Flow Cell (Lightpath: 2mm)
Type 77 Particle Analysis Flow Cell (Lightpath: 2mm)
2mm flow through cell that can be used for flow cytometry, particle analysis, liquid chromatography and many other applications. This design can be modified for your specific use.
Features of FireflySci Type 77 Particle Analysis Cell:
Highly accurate results, only need to test sample once.
Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
Made by hand, ensuring high quality optical polishing with no defects.
Each cell goes through a vigorous inspection process before leaving our factory.
Fire-fused to ensure that cuvettes are robust and durable.
Available in (UV Quartz & IR Quartz)
Comes with standard 2mm lightpath. Can be modified if need be.
All surfaces polished.
Contains square flow through channel.
| Lightpath | Top | Outer Length | Outer Width | Outer Height | Inner Length | Inner Width | Capacity |
|---|---|---|---|---|---|---|---|
| 2mm | Flow Through | 10.5mm | 10.5mm | 27.4mm | 2.0mm | 2.0mm | 0.110ml |
| Material | Lightpath | Part # |
|---|---|---|
| UV Quartz | 2mm | 77UV2 |
| IR Quartz | 2mm | 77IR2 |
![firefly_logo_FINAL [Black].jpg](https://images.squarespace-cdn.com/content/v1/5411d5c0e4b02e1c8b27565a/1434491508803-XB4OF7YDY46Z72L5U5AP/firefly_logo_FINAL+%5BBlack%5D.jpg){kind=logo}
Assembly and Fluidic System for Type 526 Flow Cell. Can also be used on a wide range of custom flow cells.
