Demountable Cuvettes
Demountable cuvettes typically used for circular dichroism experiments.
Type 42 Demountable Disc Circular Dichroism Cuvette (Lightpaths: 0.1-2mm)
Type 42 Demountable Disc Circular Dichroism Cuvette (Lightpaths: 0.1-2mm)
FireflySci's disc-shaped cuvettes are popular among researchers who perform CD (Circular Dichroism) as well as researchers who work with small volume samples. Demountable cuvettes are very easy to clean because they can be taken apart after each use.
The disc shape keeps the sample completely enclosed within the A26 holder.
Features of FireflySci Type 42 Demountable Disc Circular Dichroism Cuvette:
Highly accurate results, only need to test sample once.
Accuracy and high quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
Made by hand, ensuring high quality optical polishing with no defects.
Each cell goes through a vigorous inspection process before leaving our factory.
Fire-fused to ensure that cuvettes are robust and durable.
Available in UV Quartz.
Lightpaths from 0.1-2mm available
Two windows optically polished.

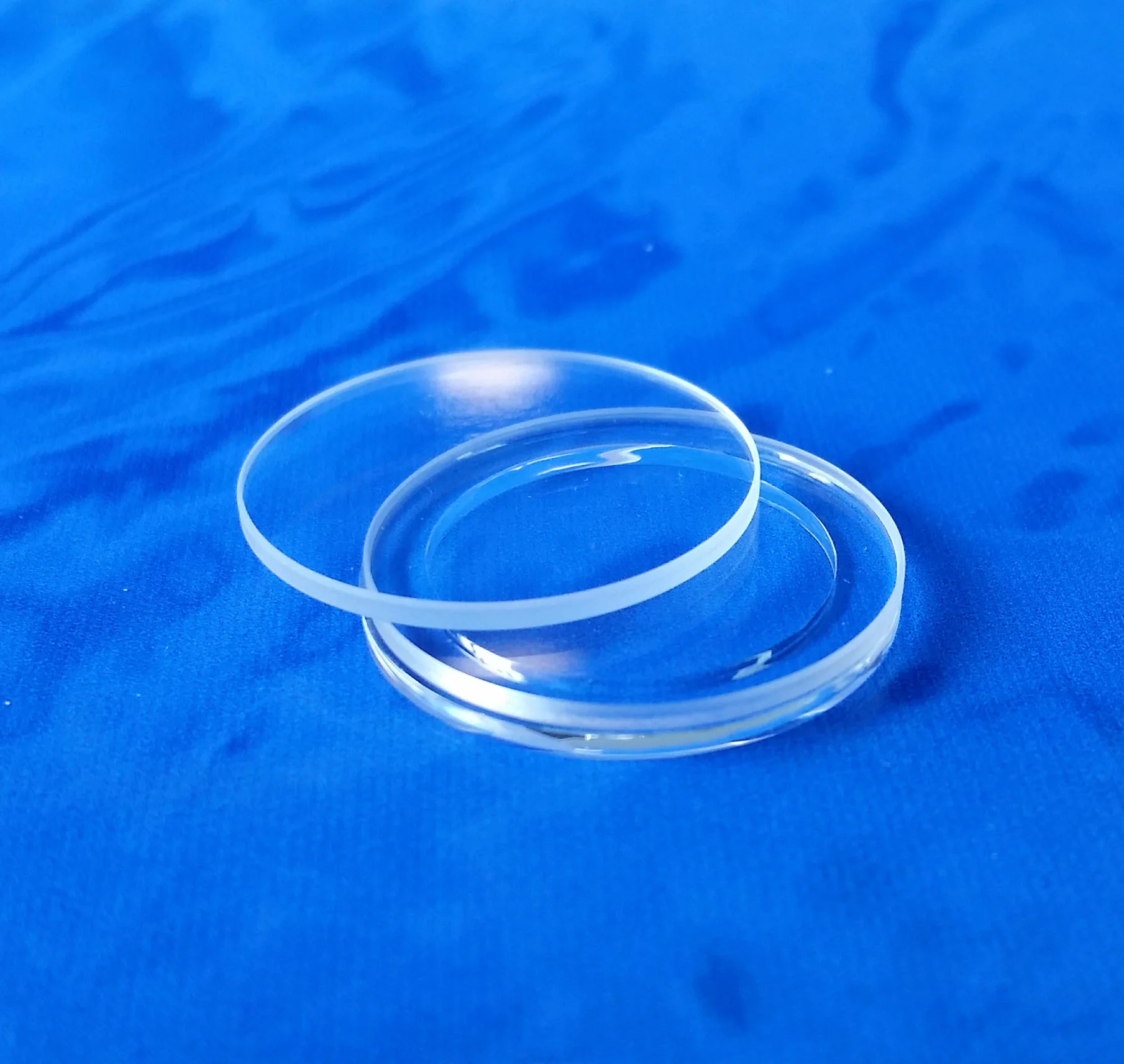

Disc-shaped demountable spectrophotometer cuvette with removable window.
| Lightpath | Top | Thickness | Outer Diameter | Inner Diameter | Capacity |
|---|---|---|---|---|---|
| 0.1mm | Closed | 2.60mm | 22.0mm | 16mm | 0.02ml |
| 0.2mm | Closed | 2.70mm | 22.0mm | 16mm | 0.04ml |
| 0.5mm | Closed | 3.0mm | 22.0mm | 16mm | 0.08ml |
| 1mm | Closed | 3.5mm | 22.0mm | 16mm | 0.16ml |
| 2mm | Closed | 4.5mm | 22.0mm | 16mm | 0.32ml |
![firefly_logo_FINAL [Black].jpg](https://images.squarespace-cdn.com/content/v1/5411d5c0e4b02e1c8b27565a/1434491508803-XB4OF7YDY46Z72L5U5AP/firefly_logo_FINAL+%5BBlack%5D.jpg){kind=logo}
Cuvette mount for Type 42 Circular Dichroism Disc Cells. This mount fastens the two sides of the disc together.
