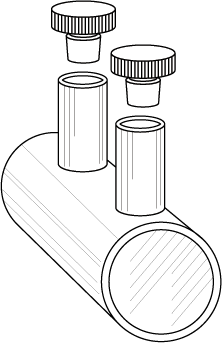

Type 34 Large Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 50-200mm)


Type 34 Large Cylindrical Polarimeter Cell with PTFE Stopper (Lightpaths: 50-200mm)

from 99.00

FireflySci's long lightpath cylindrical polarimeter cell with two PTFE stopper for keeping the contents firmly secured.

Lightpath:
Material:
Quantity:
Add To Cart

Features of FireflySci Type 34 Cylindrical Polarimeter Cell:

  • Highly accurate results, only need to test sample once.
  • Premium quality: Firefly cuvettes are made with the best quality quartz and glass material available. Excellent transmission values.
  • Made by hand, ensuring high quality optical polishing with no defects.
  • Each cell goes through a rigorous inspection process before leaving our factory.
  • Fire-fused to ensure that cuvettes are robust and durable.
  • Comes in several different materials: (Optical Glass, UV Quartz, IR Quartz)
  • Lightpaths from 50-200mm available
  • Two windows optically polished.
  • Includes PTFE stoppers.
LightpathTopOuter LengthOuter DiameterOuter HeightChamber LengthChamber DiameterCapacity
50mmPTFE Stoppers52.5mm22.0mm35.5mm50.0mm19.0mm14.000ml
100mmPTFE Stoppers102.5mm22.0mm35.5mm100.0mm19.0mm28.000ml
200mmPTFE Stoppers202.5mm22.0mm35.5mm200.0mm19.0mm56.000ml
